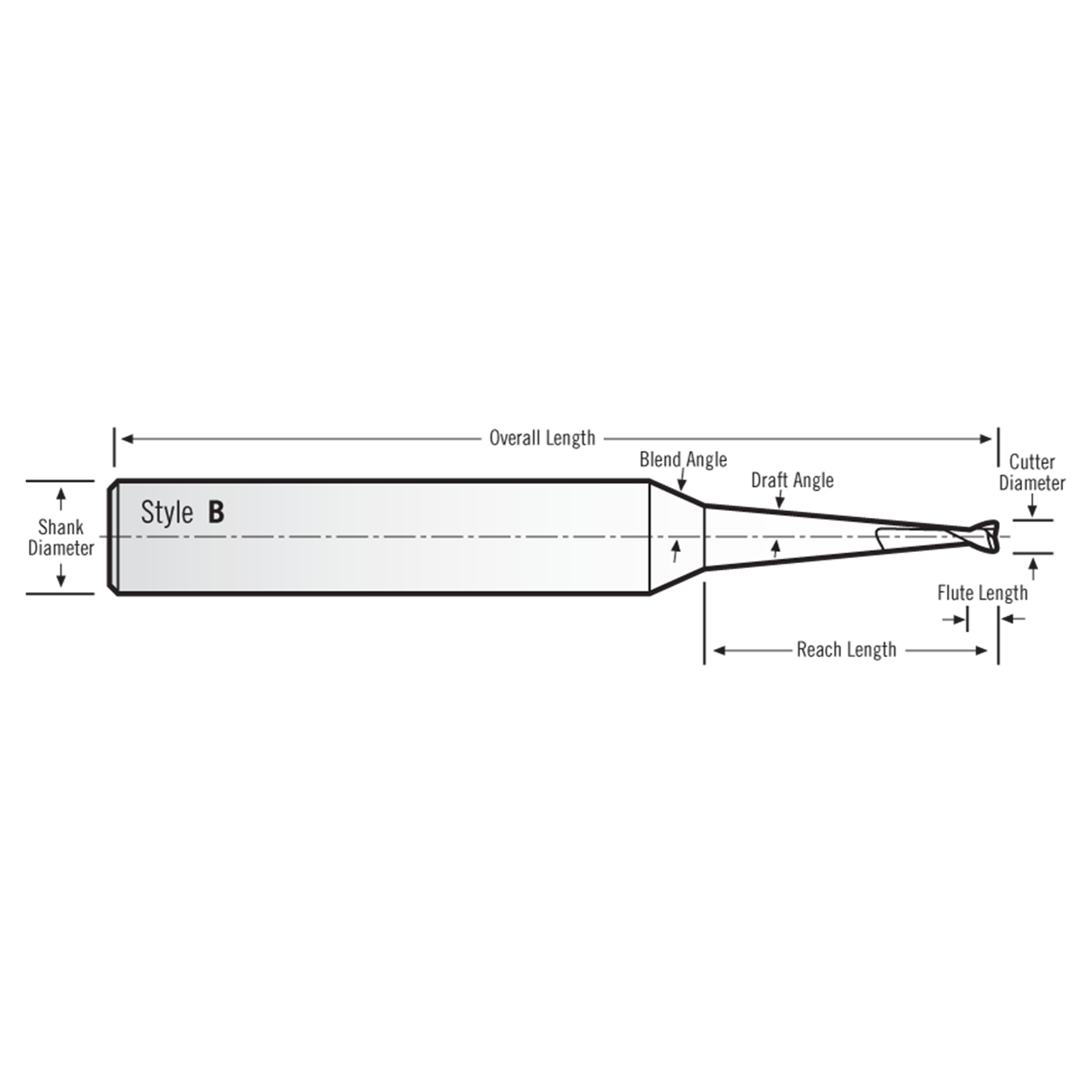

Product Specifications
| # Manufacturer Number | TM-203-01 |
| Cutting Diameter (Inch) | 0.0312" |
| Shank Diameter (Inch) | 0.2500" |
| Maximum Cutting Diameter (Inch) | 0.0302" |
| Flute Length (Inch) | 0.0312" |
| Overall Length (Inch) | 2.5000" |
| Reach Length (Inch) | 0.1875" |
| Corner Radius (Inch) | 0.0080" |
| Draft Angle (Inch) | 1.5000" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | AlTiN Coated |
| Product Type | Miniature Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Number of Flutes:
2
Finish/Coating:
AlTiN
