RobbJack XG-402-06 | 0.1875" Diameter x 0.1875" Shank x 2.5000" OAL 4 Flute AlTiN Coated Square End Mill

$53.31
Brand:
RobbJack
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
4
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
Right Hand
SKU:
25208761
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack XG-402-06 | 0.1875" Diameter x 0.1875" Shank x 2.5000" OAL 4 Flute AlTiN Coated Square End Mill

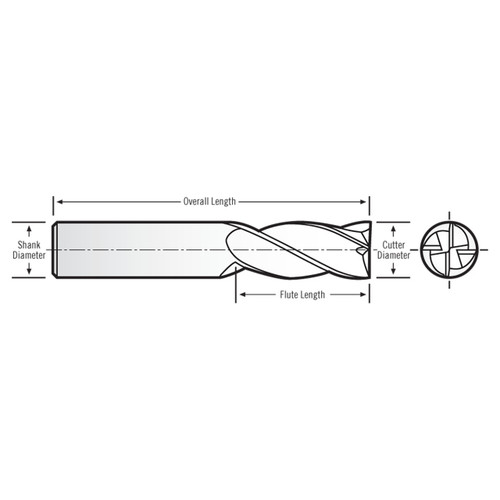

Product Specifications
# Manufacturer NumberXG-402-06
Cutting Diameter (Inch)0.1875"
Shank Diameter (Inch)0.1875"
Maximum Cutting Diameter (Inch)0.1865"
Flute Length (Inch)0.6250"
Overall Length (Inch)2.5000"
Corner Radius (Inch)0.0080"
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
Number of Flute4
CoatingAlTiN Coated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
4
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
Right Hand
