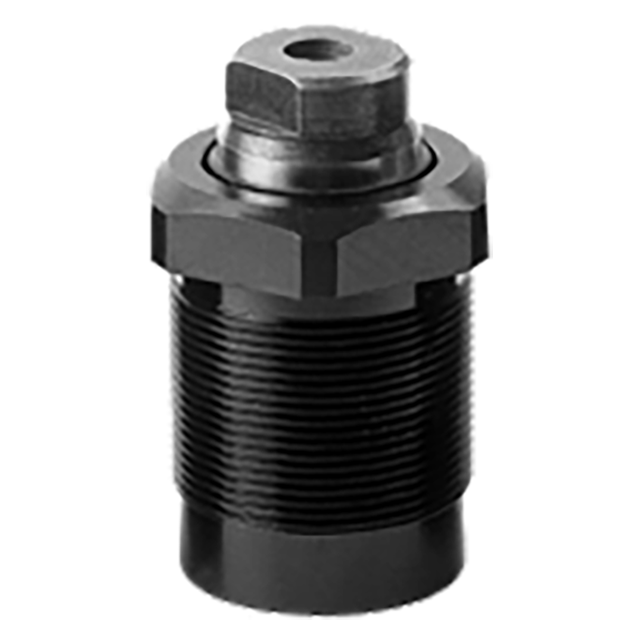

Roemheld CLR-1464-101-TB | M48x1.5 Thread x 20mm Stroke Threaded-Body Cylinder

Roemheld Threaded-Body Cylinders-Double Wiper-Tapped Plunger

Versatile push clamps that provide considerable force in a small size. These small clamps can be placed very close together, especially when manifold mounted. Clamps can be screwed all the way down to their hex flats, or installed at partial depth. Long plunger guide ensures excellent reliability and durability.The dual-wiper version has an additional rod wiper at the top to prevent contamination of the internal spring area by cutting fluids. This version is a direct substitute for the standard version, except that the larger hex head increases minimum clamp spacing.

Clamping Action

Applying fluid pressure advances the plunger. Spring return.

Design Considerations

Threaded-Body Push Clamps have a positive stroke stop in extended position, but not in retracted position. Do place a load on the plunger while retracted.

Mounting & Fluid Supply

Several possible mounting methods:

1) install clamp directly into a flat-bottom tapped hole in the fixture;

2) install clamp into a Mounting Block;

3) install clamp into a Feeder Cap and mount through a fixture wall (secure with a Jam Nut or Mounting Flange). In all cases, hydraulic sealing is accomplished by a Sealing Washer (furnished) placed directly underneath the clamp. Tighten clamp to recommended seating torque.Fluid passages must be drilled. Do not use NPT fittings.

Material

Parts Specification
