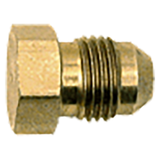

Roemheld Tube Plug 37-Degree Flare
CLR-501-F Cap fittings can be installed on any standard 5/16" male JIC 37° fitting to shut off flow. JIC-standard 37° fittings accept The standard 5/16" O.D. tubing (cut off straight, deburred, and flared) as well as Fixture Hose and Heavy-Duty Hose with 37°-flare swivel nuts. When using tubing, a Tube End fitting (CLR-400-F), consisting of a nut and sleeve, must be placed on each tube end before flaring is completed.
Application Information
Design Considerations & Safety Precautions
7250 psi max imum operating pressure. Use these fittings only with The standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.Material
7250 psi max imum operating pressure. Use these fittings only with the standard steel tubing and hydraulic hose. The standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, 0.065" wall thickness, 22,800 psi minimum burst pressure.
Parts Specification
| Maximum Operating Pressure (PSI) | Tubing O.D. Size (Inch) |
| 7500 | 5/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
