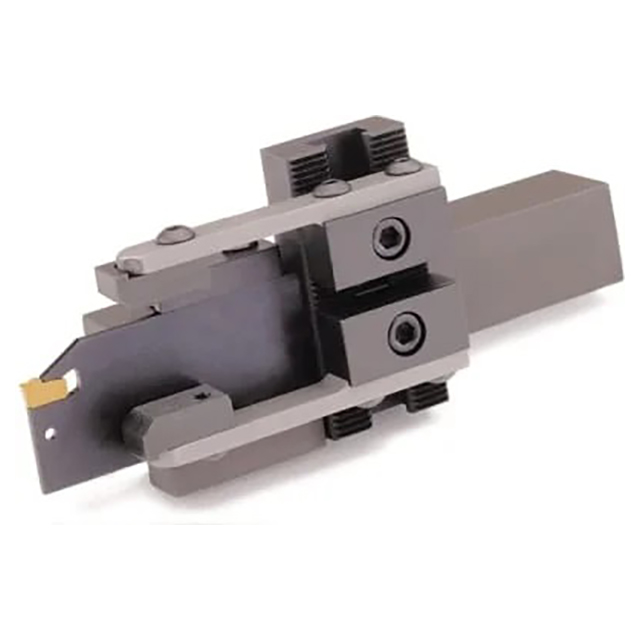

- The Royal Combo CNC Bar Puller is both a bar puller and a cut-off tool in one unit. Benefits of this design include:
- Saving a turret station
- Reduced cycle time because the turret does not need to index between the cut-off and pulling operations
- Very easy to setup and use
- Unit can pull round, square, and hex stock
- Compact design enables it to be used on most CNC lathes
- Each Combo Bar Puller includes one set of standard jaws and one blank spindle bushing
Product Specifications
| Bar Puller Shank Size (mm) | 25mm |
| Bar Puller Shank Shape | Square |
| Bar Puller Gripping Range (mm) | 3 - 57mm |
| Combo Bar Puller Dimension A (mm) | 67mm |
| Combo Bar Puller Dimension B (mm) | 162mm |
| Combo Bar Puller Dimension C (mm) | 30mm |
| Max Depth of Cut (D) (mm) | 32mm |
| Combo Bar Puller Dimension E (mm) | 3mm |
