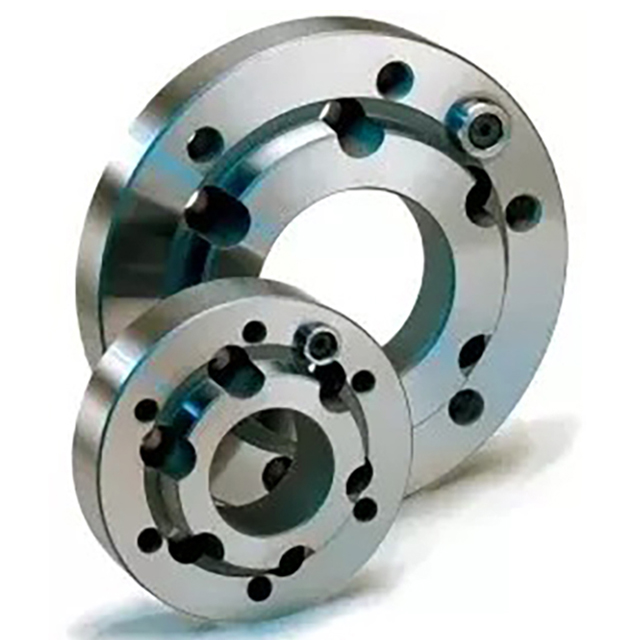

Royal 44010 | 8.25" Diameter x A2-8 Spindle x A2-6 Chuck Hardened and Ground Adapter Chuck Plates

$2,150.00 $1,935.00
(You save $215.00)
Brand:
Royal Products
Diameter (Inch):
8-1/4"
Diameter (Decimal Inch):
8.2500"
Diameter (mm):
209.55mm
interval quantity:
1
SKU:
55046408
UPC:
Weight:
21.00 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

  • Adapter plates offer the flexibility to mount collet chucks and 3-jaw chucks to a wider range of spindles

    • Mount a larger chuck on a smaller spindle for increased capacity
    • Mount a smaller chuck on a larger spindle for increased tool clearance and higher speeds

  • All Royal adapter plates are hardened to RC 61-63

  • High accuracy – 0.0002? TIR guaranteed

  • Metric screws included for mounting plate to spindle

  • Drive button included on all plates

    •
    Product Specifications
    Plate Diameter (Inch) 8.25"
    Spindle Mount A2-8
    Chuck Mount A2-6
    Plate Thickness 1.75
    Thru-Hole Diameter 3.44
    Spindle Mounting Bolts M-16
    Chuck Mount Threats M-12
