Royal Products 70798 | Albrecht Body & Spindle Assembly for C30-J0 Classic Keyless Drill Chuck

$148.00 $133.20
(You save $14.80)
interval quantity:
1
SKU:
55048358
UPC:
Weight:
0.06 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

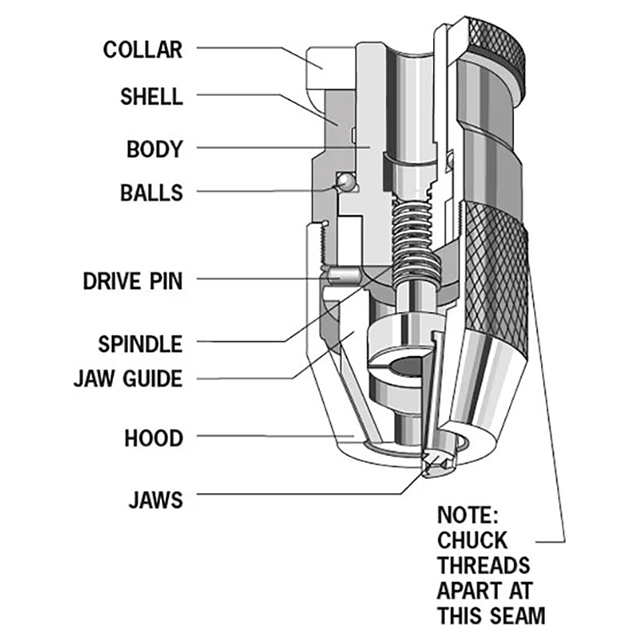

  • Remove collar from chuck
  • There is an invisible seam between the hood and shell. Hold chuck by the shell in a vise with soft jaws and loosen hood with a strap wrench – RH thread
  • Once the hood has been loosened, unscrew by hand to prevent distortion
  • Slide jaws out of jaw guide and remove guide
  • Remove body and spindle assembly to expose balls
  • Clean all parts with a mild solvent
  • Replace worn or damaged parts
  • Reverse steps for assembly

Product Specifications
Chuck ModelC30-J0

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
