Product Specifications
| Manufacturer Part Number | 1447941 |
| Diameter 1 (mm) | 6.00mm |
| Diameter 2 (mm) | 26.00mm |
| Diameter 3 (mm) | 49.00mm |
| Diameter 6 (mm) | 19.80mm |
| Projecting length 1 (Decimal Inch) | 3.200" |
| Projecting length 1 (mm) | 81.00mm |
| Projecting length 2 (mm) | 37.00mm |
| Projecting length 3 (mm) | 10.00mm |
| Projecting length 4 (mm) | 24.00mm |
| Projecting length 5 (mm) | 61.95mm |
| Thread (G) | M5 |
| Minimum Torque (Nm) | 16 Nm |
| RPM | 25000 |
| Grade Value | G2.5 |
| Run Out (at 2.5D)?? | <0.003mm |
| Series | TENDO Platinum |
| Toolholder Interface | CAT 50 |
| Toolholder Standard | ASME B5.50 |

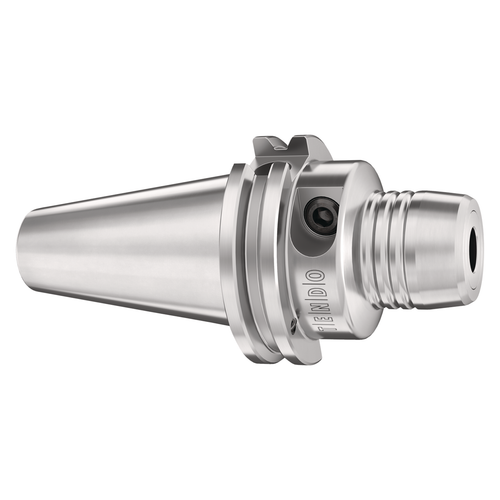

| Product Type | Hydraulic Tool Chuck |
