Features:
- Non-crest cutting allows maximum flexibity for plated and non-standard threads
- Minimal side cutting pressure
- Conforms to aerospace standard AS8879
Product Specifications

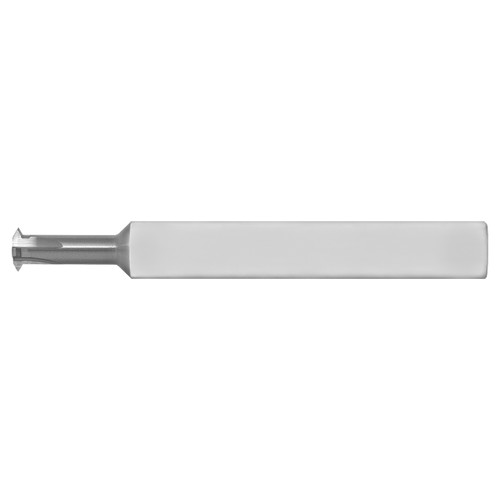

| Manufacturer Part Number | SPTM372-20EXJ |
| Cutting Diameter (Decimal Inch) | 0.372" |
| Neck Diameter (Decimal Inch) | 0.240" |
| Radius (Decimal Inch) | 0.008" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Overall Length (Decimal Inch) | 3.000" |
| Length (Decimal Inch) | 0.044" |
| Length of Cut (Decimal Inch) | 1.000" |
| Thread Size | 20 |
| Number of Flute | 4 |
| Thread Standard | UNJ |
| Radius (Decimal Inch) | 0.008" |
| Thread Pitch | UNJ-20 |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Single Profile Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Cutting Diameter (Inch):
16/43"
Cutting Diameter (Decimal Inch):
0.3720"
Cutting Diameter (mm):
9.45mm
Neck Diameter (Inch):
6/25"
Neck Diameter (Decimal Inch):
0.2400"
Neck Diameter (mm):
6.10mm
interval quantity:
1
