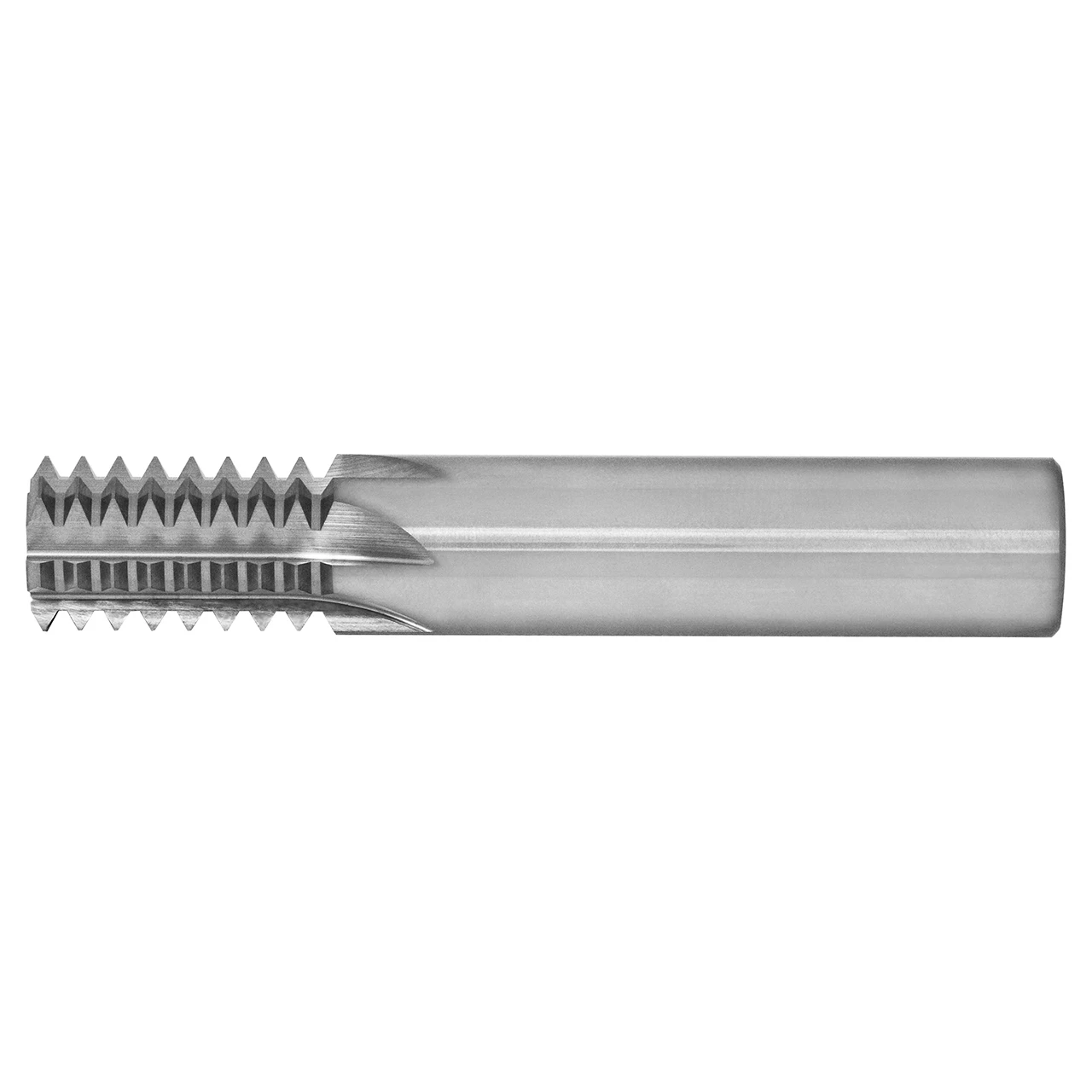

Product Specifications
| Manufacturer Part Number | TM280-27NPTF-A |
| Cutting Diameter (Decimal Inch) | 0.280" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Overall Length (Decimal Inch) | 3.500" |
| Minium ID Thread | 1/8-27 |
| Length (Decimal Inch) | 0.018" |
| Length of Cut (Decimal Inch) | 0.758" |
| Number of Flute | 4 |
| Material | Solid Carbide |
| Coating | AlTiN |
| Product Type | Straight Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Cutting Diameter (Inch):
9/32"
Cutting Diameter (Decimal Inch):
0.2800"
Cutting Diameter (mm):
7.14mm
Length of Cut (Inch):
47/62"
Length of Cut (Decimal Inch):
0.7580"
Length of Cut (mm):
19.25mm
Finish/Coating:
AlTiN
interval quantity:
1
