Features:
- Optional short length-of-cut for ideal length-to-diameter ratio
- Cuts UNC, UNF, UNEF, UNS, and UNJ (internal only)
- Internal crest cutting design provides strongest possible tooling
Product Specifications

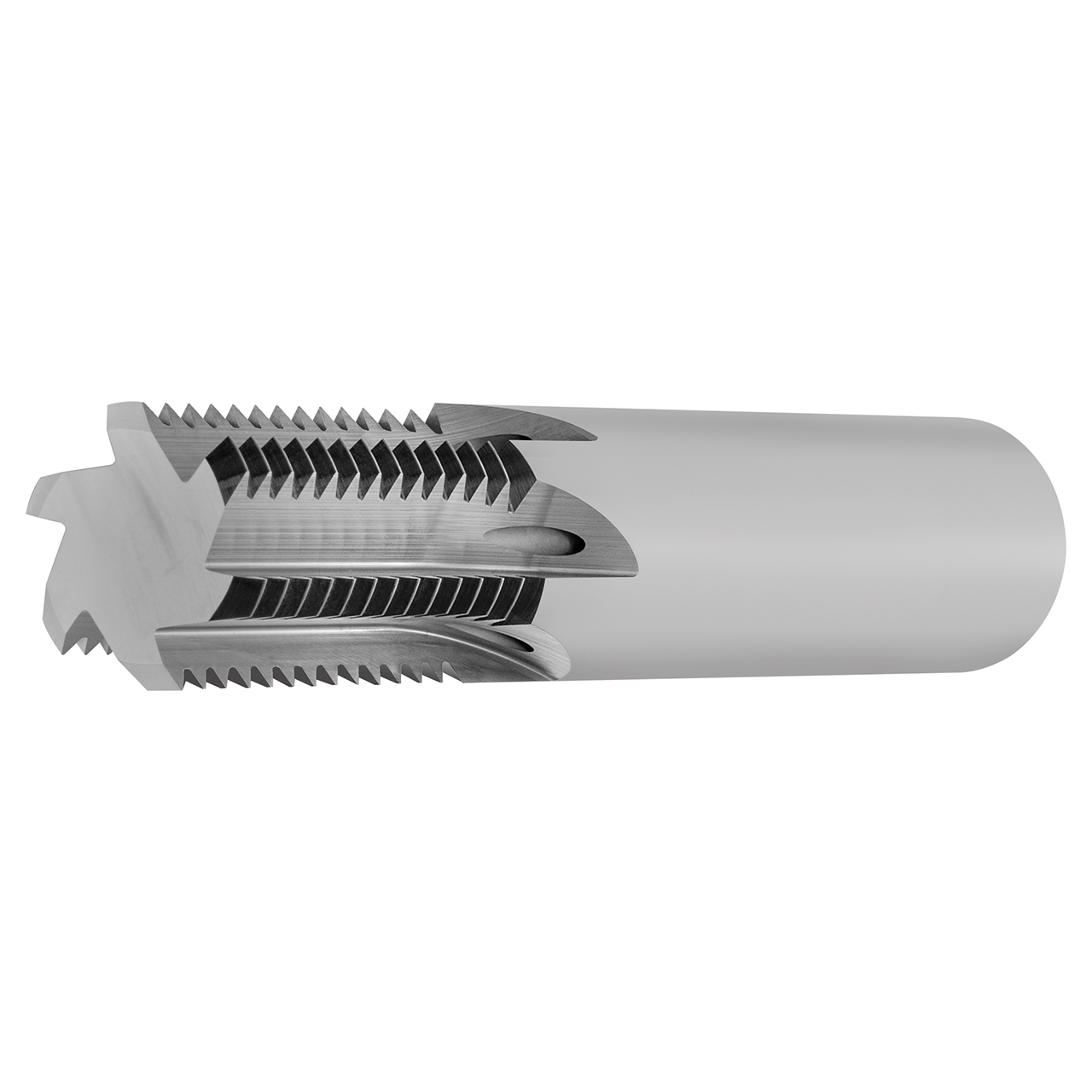

| Manufacturer Part Number | TMC400-32 |
| Cutting Diameter (Decimal Inch) | 0.400" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 3.500" |
| Minium ID Thread | 1/2-32" |
| Length (Decimal Inch) | 0.013" |
| Length of Cut (Decimal Inch) | 1.106" |
| Number of Flute | 4 |
| Thread Pitch | 1/2-32" |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Straight Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Solid Carbide
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Number of Flutes:
4
Cutting Diameter (Inch):
13/32"
Cutting Diameter (Decimal Inch):
0.4000"
Cutting Diameter (mm):
10.16mm
Length of Cut (Inch):
1-7/66"
Length of Cut (Decimal Inch):
0.4000"
Length of Cut (mm):
28.09mm
Finish/Coating:
Uncoated
