Features:
- AlTiN+ coating for higher cutting speed
- Coolant to each flute
- Cuts UNC, UNF, UNEF, and UNS threads
- Cuts UNJ threads (internal only)
Product Specifications

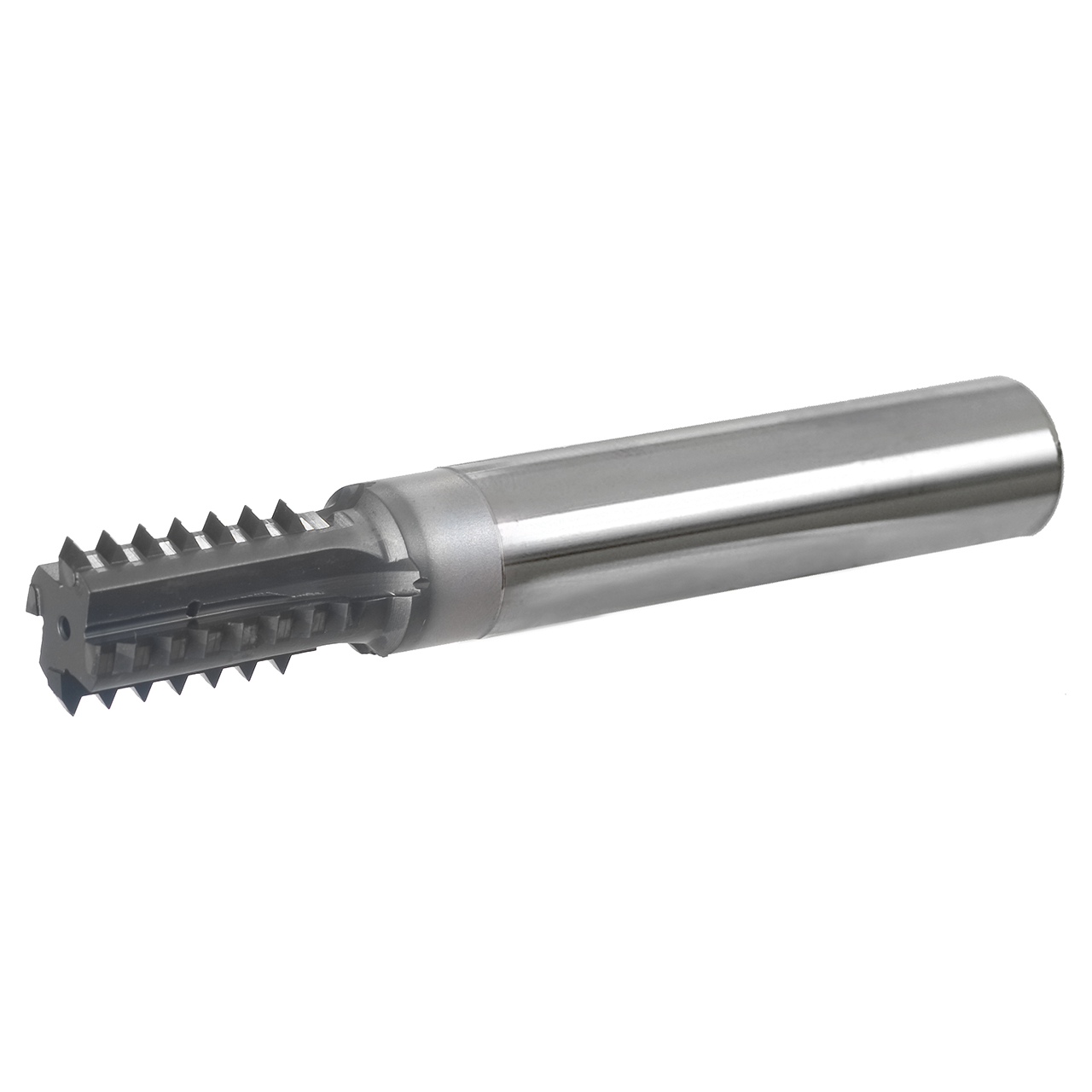

| Manufacturer Part Number | TMC740-7 |
| Cutting Diameter (Decimal Inch) | 0.740" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Overall Length (Decimal Inch) | 6.000" |
| Length (Decimal Inch) | 0.065" |
| Length of Cut (Decimal Inch) | 1.130" |
| Number of Flute | 4 |
| Thread Pitch | 1-1/4-" |
| Material | Carbide Tipped |
| Coating | Uncoated |
| Product Type | Straight Flute Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Material:
Carbide Tipped
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Number of Flutes:
4
Cutting Diameter (Inch):
47/64"
Cutting Diameter (Decimal Inch):
0.7400"
Cutting Diameter (mm):
18.80mm
Length of Cut (Inch):
1-10/77"
Length of Cut (Decimal Inch):
1.1300"
Length of Cut (mm):
28.70mm
Finish/Coating:
Uncoated
