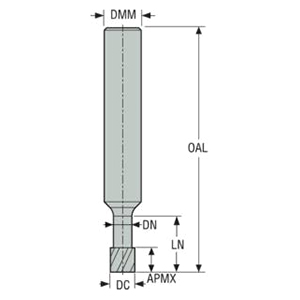

| Manufacturer Part Number | 17000532 |
| Cutting Diameter (Decimal Inch) | 0.350" |
| Cutting Diameter (mm) | 8.89mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.453" |
| Minimum Cutting Diameter (mm) | 11.51mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Neck Diameter (Decimal Inch) | 0.227" |
| Neck Diameter (mm) | 5.77mm |
| Thread Diameter Size | 1/2 |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Protruding Length (Decimal Inch) | 1.563" |
| Protruding Length (mm) | 39.69mm |
| Shank Length (Decimal Inch) | 2.750" |
| Shank Length (mm) | 69.85mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 3.81mm |
| Maximum Depth of Cut (Decimal Inch) | 0.150" |
| Cutting Direction | Right Hand |
| Number of Flute | 3 |
| Tooth Count | 3 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Product Type | Helical Flute Thread Mill |
