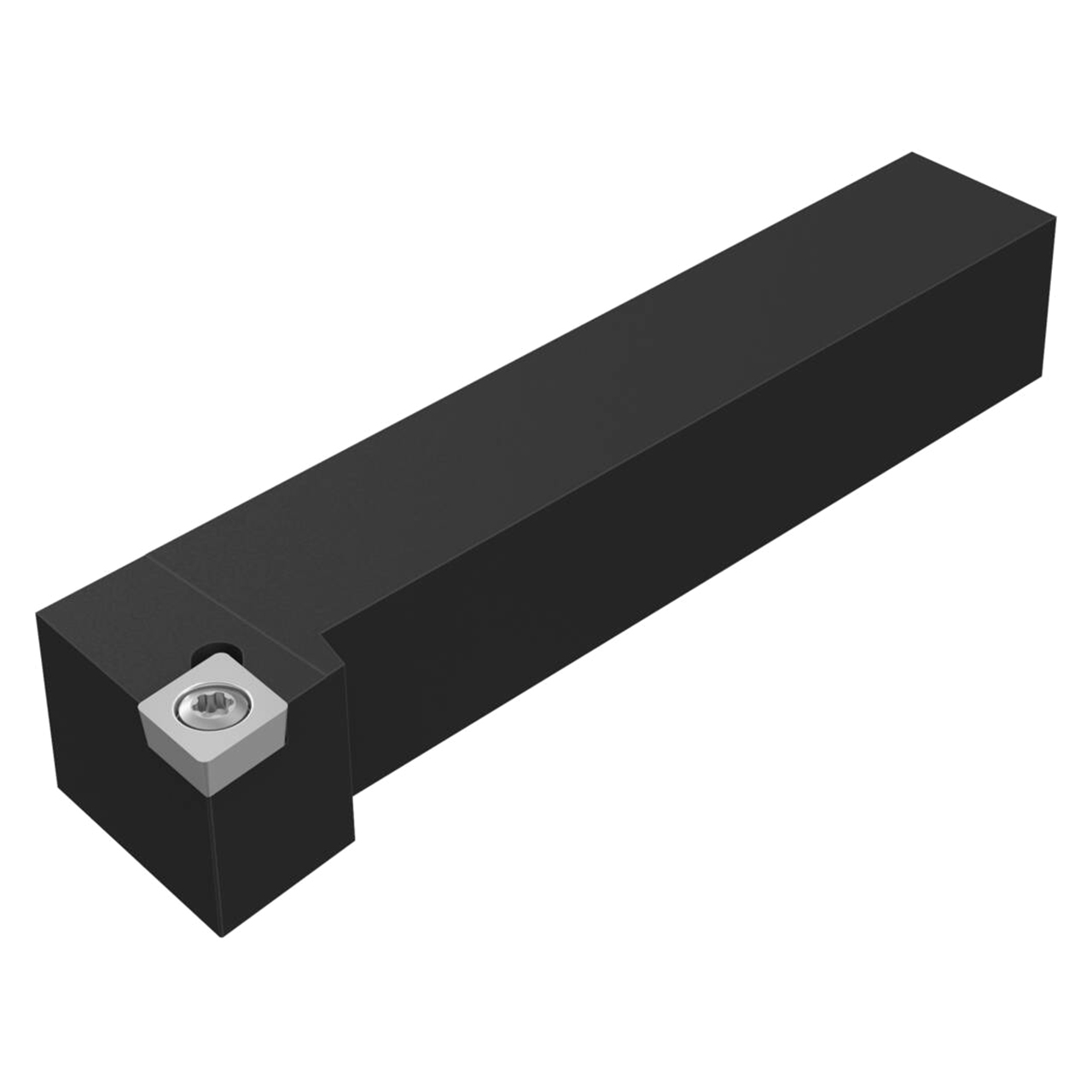

Product Specifications
| Manufacturer Part Number | 00071949 |
| Functional Length (Decimal Inch) | 3.500" |
| Functional Length (mm) | 88.90mm |
| Head Length (Decimal Inch) | 0.670" |
| Head Length (mm) | 17.02mm |
| Shank Length (Decimal Inch) | 2.830" |
| Shank Length (mm) | 71.88mm |
| Shank Width (Decimal Inch) | 0.500" |
| Shank Width (mm) | 12.70mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.500" |
| Height of Tool Holder Shank (mm) | 12.70mm |
| Functional Height (Decimal Inch) | 0.500" |
| Functional Height (mm) | 12.70mm |
| Functional Width (Decimal Inch) | 0.625" |
| Functional Width (mm) | 15.88mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Insert Shape Code | C |
| Shank Type | Square shank |
| Product Type | Indexable Turning Toolholder |
