Product Specifications

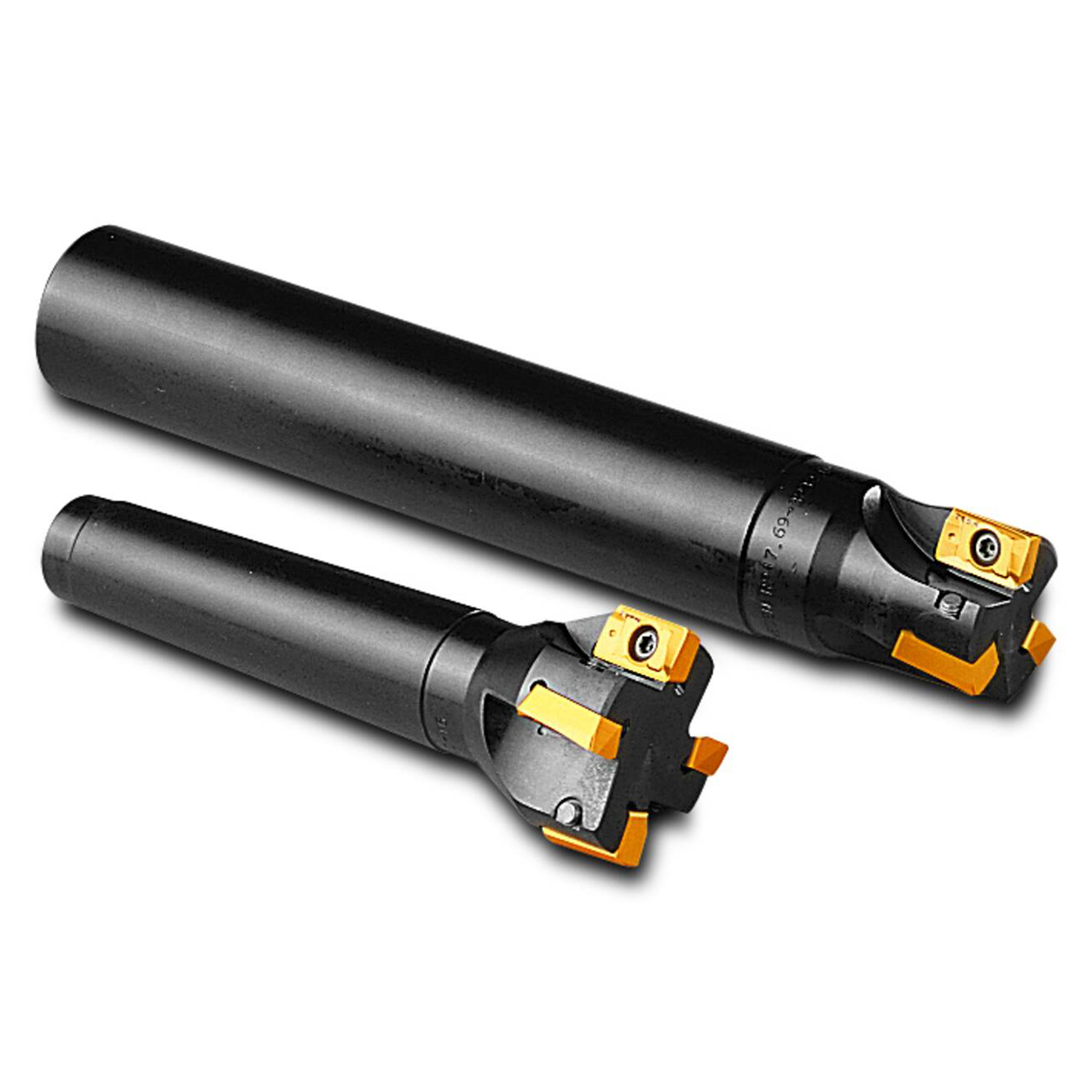

| Manufacturer Part Number | 00072158 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.988" |
| Maximum Helical Interpolation Hole Diameter (mm) | 50.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.890" |
| Minimum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Functional Length (Decimal Inch) | 2.795" |
| Functional Length (mm) | 71.00mm |
| Protruding Length (Decimal Inch) | 1.732" |
| Protruding Length (mm) | 44.00mm |
| Shank Length (Decimal Inch) | 2.677" |
| Shank Length (mm) | 68.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -13.6 Degree |
| Rake Radial Angle (Degree) | -13.6 Degree |
| Rake Orthogonal Angle (Degree) | -13.6 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 2.8 Degree |
| Maximum Rotational Speed (rpm) | 18400 rpm |
| Shank Type | Weldon |
| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1"
Cutting Diameter (Decimal Inch):
1.0000"
Cutting Diameter (mm):
25.40mm
Shank Type:
Weldon
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
interval quantity:
1
