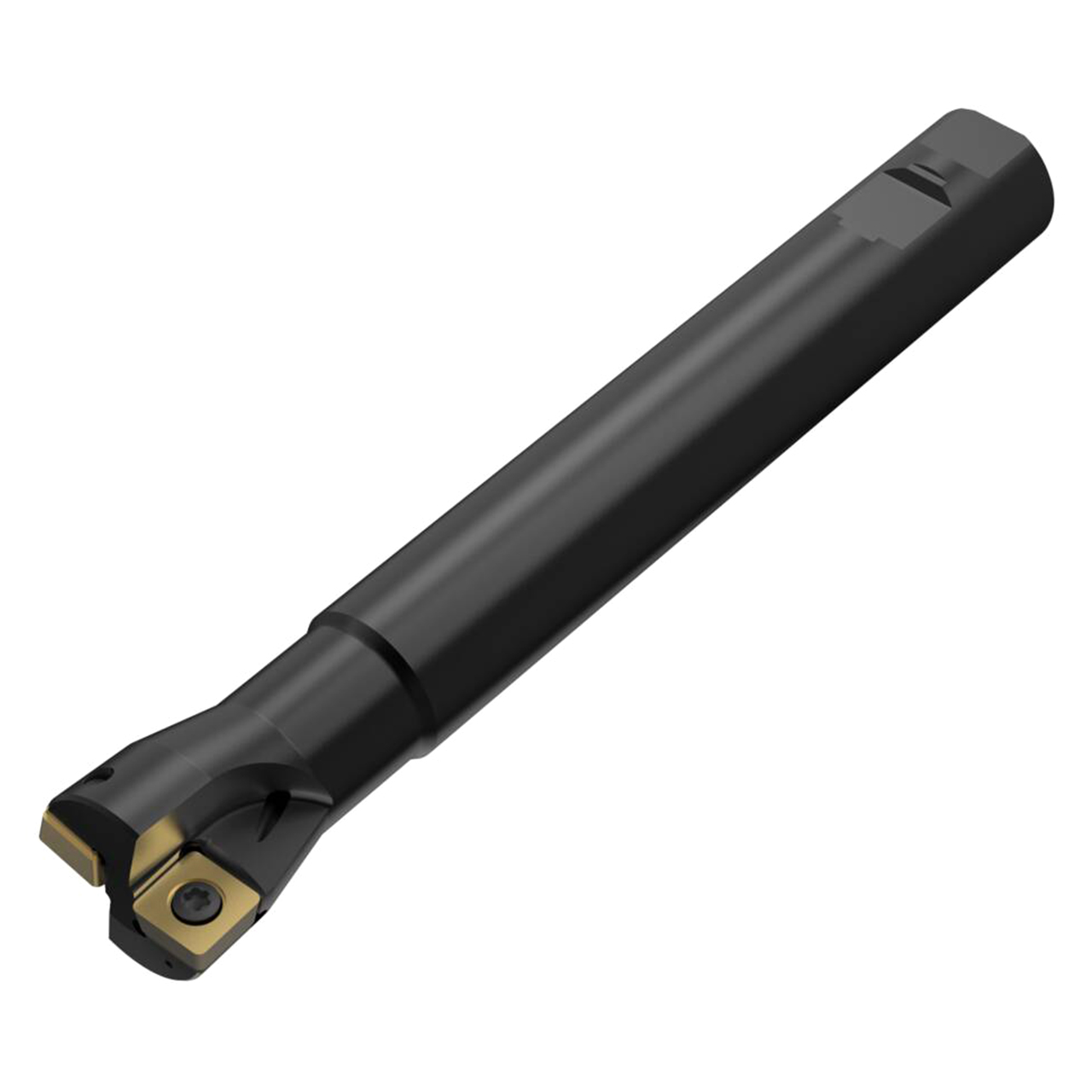

Product Specifications
| Manufacturer Part Number | 00097787 |
| Cutting Diameter (mm) | 40.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Functional Length (mm) | 164.00mm |
| Protruding Length (mm) | 140.00mm |
| Shank Length (mm) | 150.00mm |
| Overall Length (mm) | 200.00mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Rake Radial Angle (Degree) | -2 Degree |
| Rake Radial Angle (Degree) | -2 Degree |
| Tool Cutting Edge Angle (Degree) | 87 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 87 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 10800 rpm |
| Shank Type | Weldon |
| Product Type | Plunge Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Decimal Inch):
1.5748"
Cutting Diameter (mm):
40.00mm
Maximum Depth of Cut (Decimal Inch):
0.4331"
Maximum Depth of Cut (mm):
11.00mm
interval quantity:
1
