| Manufacturer Part Number | 02434942 |
| Cutting Diameter (mm) | 5.00mm |
| Cutting Diameter 1 (mm) | 5.00mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 4.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 7.90mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 6.50mm |
| Overall Length (mm) | 50.00mm |
| Neck Length (mm) | 18.00mm |
| Neck Length 1 (mm) | 18.00mm |
| Cutting Edge Effective Length (mm) | 6.00mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Corner Radius (mm) | 1.00mm |
| Shank Type | Cylindrical |
| Collision Angle (Degree) | 1.5 Degree |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | JH421 |
| Cutting Geometry Type Technical | JH421 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 18 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | MEGA-T |

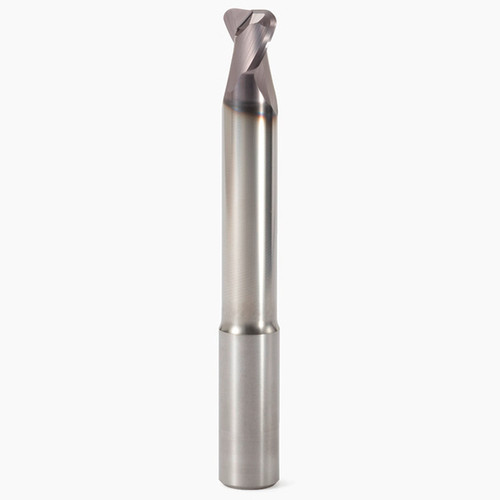

| Product Type | Corner Radius End Mill |
