Product Specifications
| Manufacturer Part Number | 02448871 |
| Cutting Diameter (mm) | 42.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Protruding Length (mm) | 70.00mm |
| Shank Length (mm) | 90.00mm |
| Overall Length (mm) | 130.00mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 12000 rpm |
| Shank Type | Weldon |

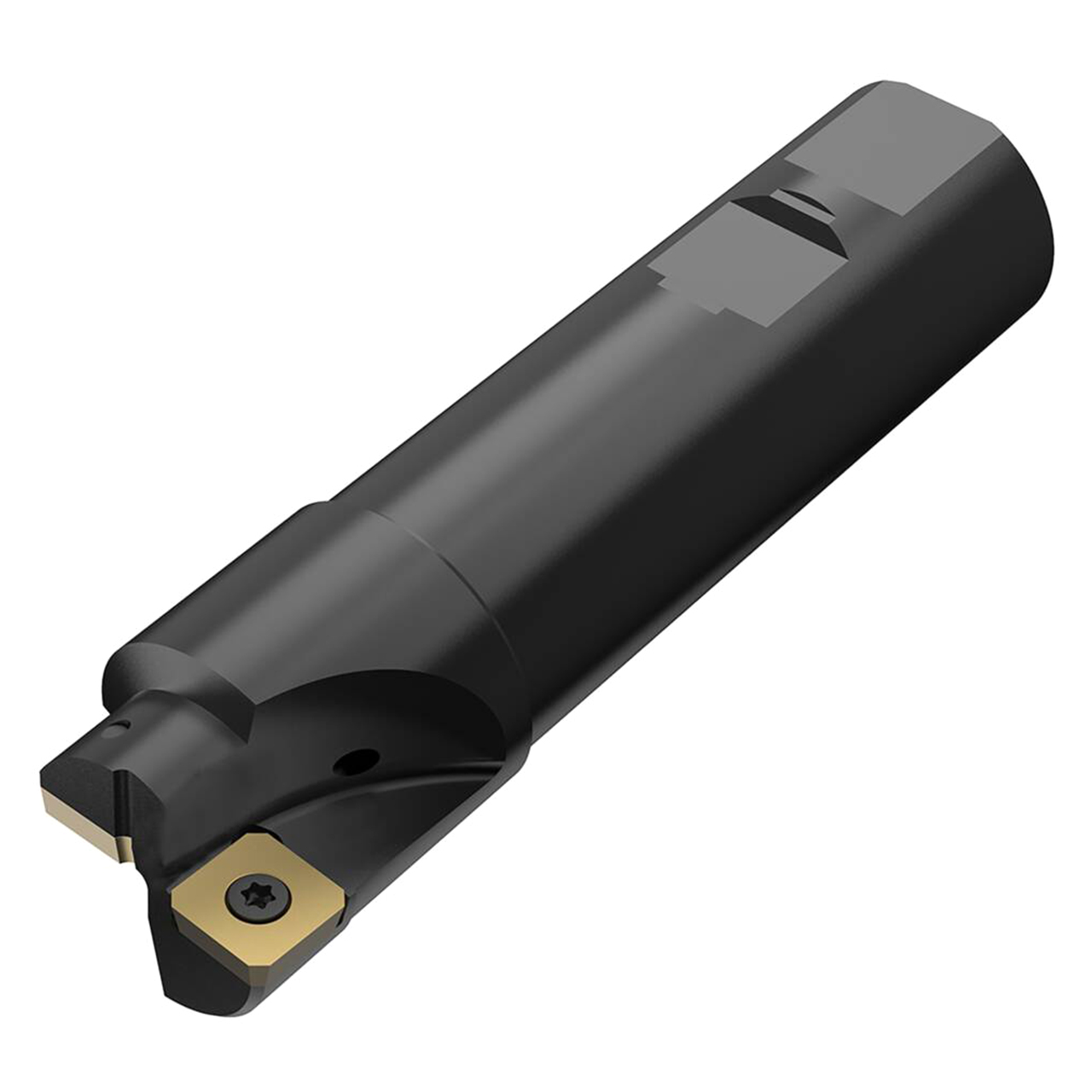

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-17/26"
Cutting Diameter (Decimal Inch):
1.6535"
Cutting Diameter (mm):
42.00mm
Shank Type:
Weldon
Shank Diameter (Inch):
1-20/77"
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Overall Length (Inch):
5-2/17"
Overall Length (Decimal Inch):
5.1181"
Overall Length (mm):
130.00mm
interval quantity:
1
