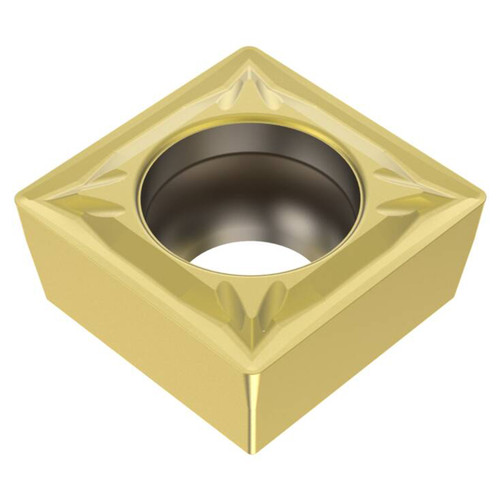

Seco Tools 02464725 | SC09T3 Size x 0.375" Inscribed Circle Diameter x 0.016" Radius x 0.156" Thickness 4 Cutting Edge PCBN Turning Insert

$230.00
Brand:
Seco Tools
Length (Decimal Inch):
0.3750"
Inscribed Circle (Decimal Inch):
0.3750"
Thickness (Decimal Inch):
0.1563"
Corner Radius (Decimal Inch):
0.0157"
interval quantity:
2
SKU:
23277201
UPC:
Weight:
0.01 LBS
Minimum Purchase:
2 units
Shipping:
Free Shipping
Seco Tools 02464725 | SC09T3 Size x 0.375" Inscribed Circle Diameter x 0.016" Radius x 0.156" Thickness 4 Cutting Edge PCBN Turning Insert

Product Specifications
Manufacturer Part Number02464725
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Cutting Edge Effective Length (Decimal Inch)0.113"
Cutting Edge Effective Length (mm)2.86mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.156"
Insert Thickness (mm)3.97mm
Clearance Angle Major (Degree)7 Degree
Cutting Edge Condition CodeS
Cutting Edge Count4
Insert Size And ShapeSC09T3
Insert Included Angle (Degree)90 Degree
MaterialPCBN
Product TypeTurning Insert
