| Manufacturer Part Number | 02553539 |
| Fixing Hole Diameter (Decimal Inch) | 0.138" |
| Fixing Hole Diameter (mm) | 3.50mm |

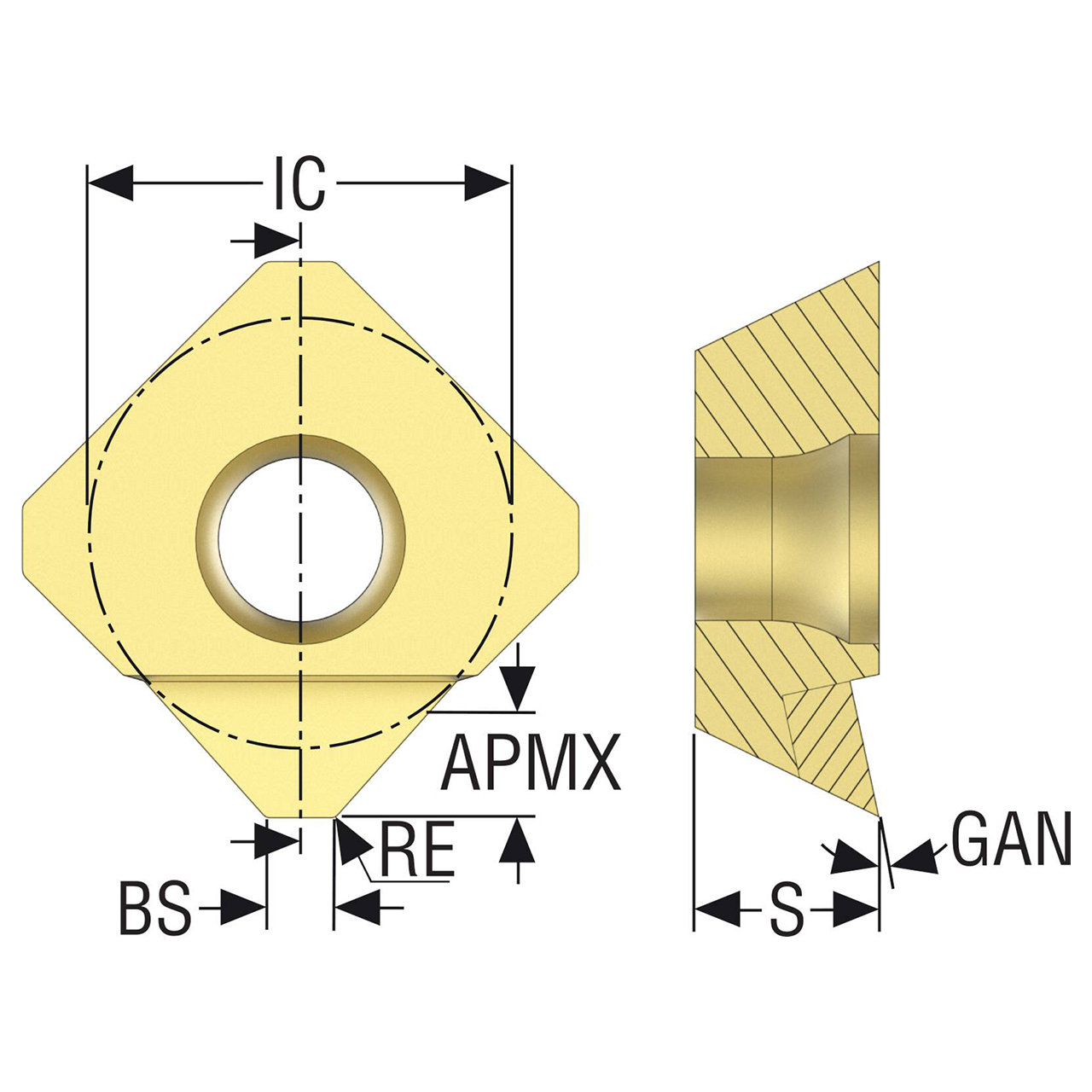

| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Wiper Edge Length (mm) | 1.50mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.077" |
| Cutting Edge Effective Length (mm) | 1.95mm |
| Maximum Depth of Cut (Decimal Inch) | 0.110" |
| Maximum Depth of Cut (mm) | 2.80mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Insert Thickness (Decimal Inch) | 0.156" |
| Insert Thickness (mm) | 3.97mm |
| Clearance Angle Major (Degree) | 26 Degree |
| Cutting Edge Condition Code | F |
| Cutting Edge Count | 1 |
| Cutting Geometry Type Technical | L1 |
| Pocket Seat Code of The Cutter | SE.X09T3 |
| Insert Size And Shape | SEEX09T3 |
| Insert Included Angle (Degree) | 90 Degree |
| Insert Rake Angle (Degree) | 12 Degree |
| Material | PCD |
| Product Type | Milling Insert |
