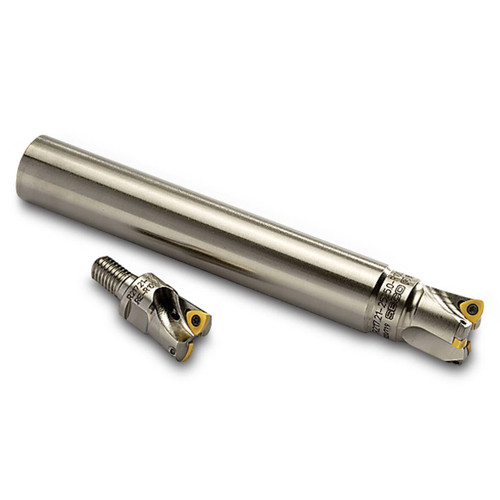

| Manufacturer Part Number | 02553730 |
| Cutting Diameter (Decimal Inch) | 0.583" |
| Cutting Diameter (mm) | 14.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.250" |
| Maximum Cutting Diameter (mm) | 31.75mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 2.421" |
| Maximum Helical Interpolation Hole Diameter (mm) | 61.50mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.833" |
| Minimum Helical Interpolation Hole Diameter (mm) | 46.55mm |
| Protruding Length (Decimal Inch) | 5.220" |
| Protruding Length (mm) | 132.58mm |
| Shank Length (Decimal Inch) | 5.906" |
| Shank Length (mm) | 150.00mm |
| Overall Length (Decimal Inch) | 7.500" |
| Overall Length (mm) | 190.50mm |
| Maximum Depth of Cut (mm) | 2.02mm |
| Maximum Depth of Cut (Decimal Inch) | 0.080" |
| Programming Radius (Decimal Inch) | 0.121" |
| Programming Radius (mm) | 3.07mm |
| Uncut Thickness (Decimal Inch) | 0.0409 |
| Uncut Thickness (mm) | 1.04 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 3.37 Degree |
| Maximum Rotational Speed (rpm) | 16200 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |
| Product Type | High Feed Trigon Shape Insert |
