Seco Tools 02566057 | 0.500" Inscribed Circle Diameter x 0.039" Radius x 0.125" Thickness 1 Cutting Edge Carbide Milling Insert

$42.90 $32.74
(You save $10.16)
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
10
SKU:
23277960
UPC:
Weight:
0.02 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Seco Tools 02566057 | 0.500" Inscribed Circle Diameter x 0.039" Radius x 0.125" Thickness 1 Cutting Edge Carbide Milling Insert

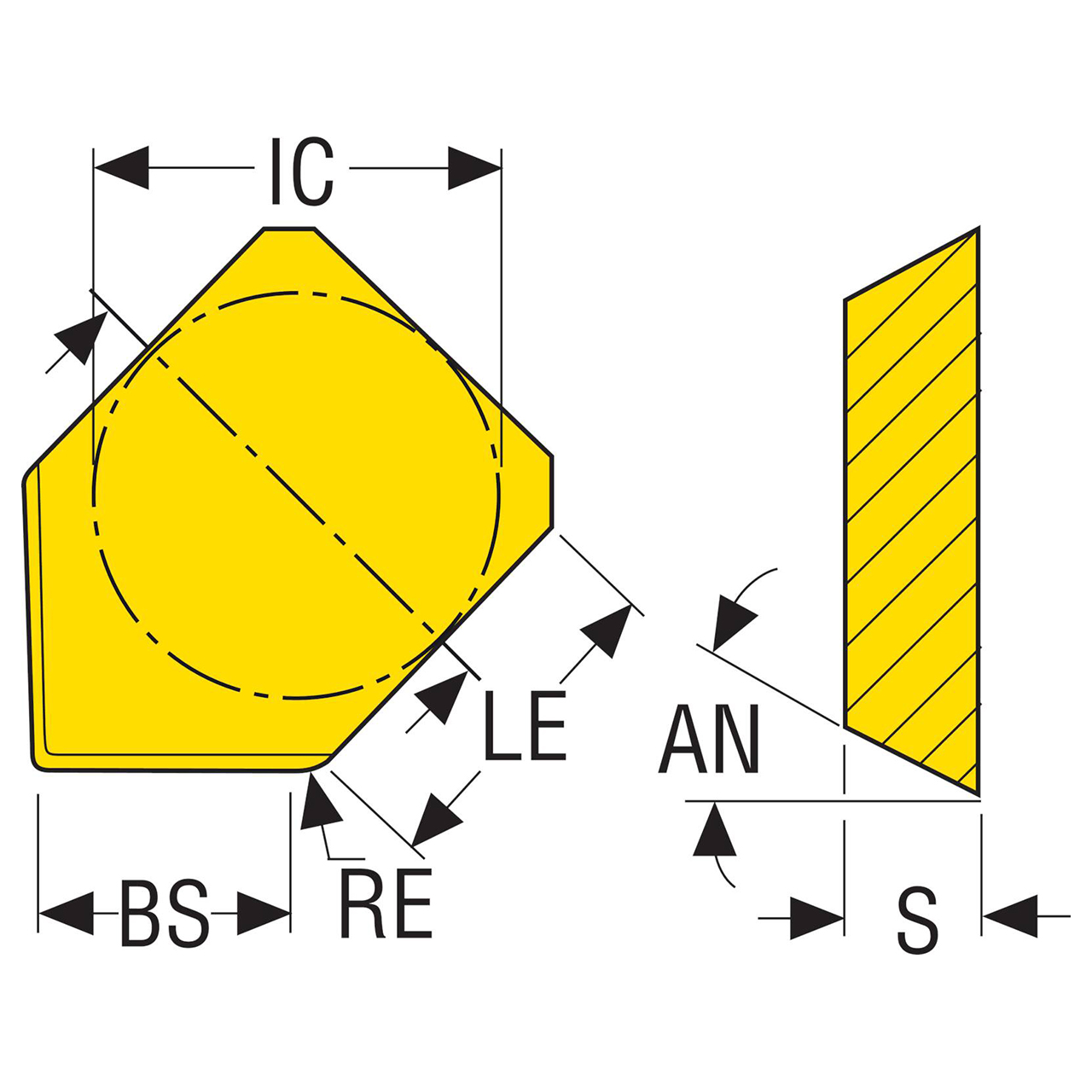

Product Specifications
Manufacturer Part Number02566057
Inscribed Circle Diameter (Decimal Inch)0.500"
Inscribed Circle Diameter (mm)12.70mm
Wiper Edge Length (Decimal Inch)0.287"
Wiper Edge Length (mm)7.30mm
Cutting Edge Effective Length (Decimal Inch)0.366"
Cutting Edge Effective Length (mm)9.30mm
Corner Radius (Decimal Inch)0.039"
Corner Radius (mm)1.00mm
Insert Thickness (Decimal Inch)0.125"
Insert Thickness (mm)3.18mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count1
Cutting Geometry Type TechnicalM15
Pocket Seat Code of The CutterSE..1203
Insert Size And ShapeSEAN1203ZZ
Insert HandNeutral
MaterialCarbide
Product TypeMilling Insert
