| Manufacturer Part Number | 02637530 |
| Cutting Diameter (mm) | 5.50mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Chip Flute Length (mm) | 103.00mm |
| Functional Length Secondary (mm) | 106.00mm |
| Shank Length (mm) | 36.00mm |
| Usable Length (mm) | 90.00mm |
| Overall Length (mm) | 142.00mm |
| Corner Chamfer Width (mm) | 0.10mm |
| Tool Cutting Edge Angle (Degree) | 68 Degree |
| Corner Chamfer Angle (Degree) | 34 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Coolant Entry Style Code | 4 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Shank Type | Cylindrical |
| Material | Carbide |

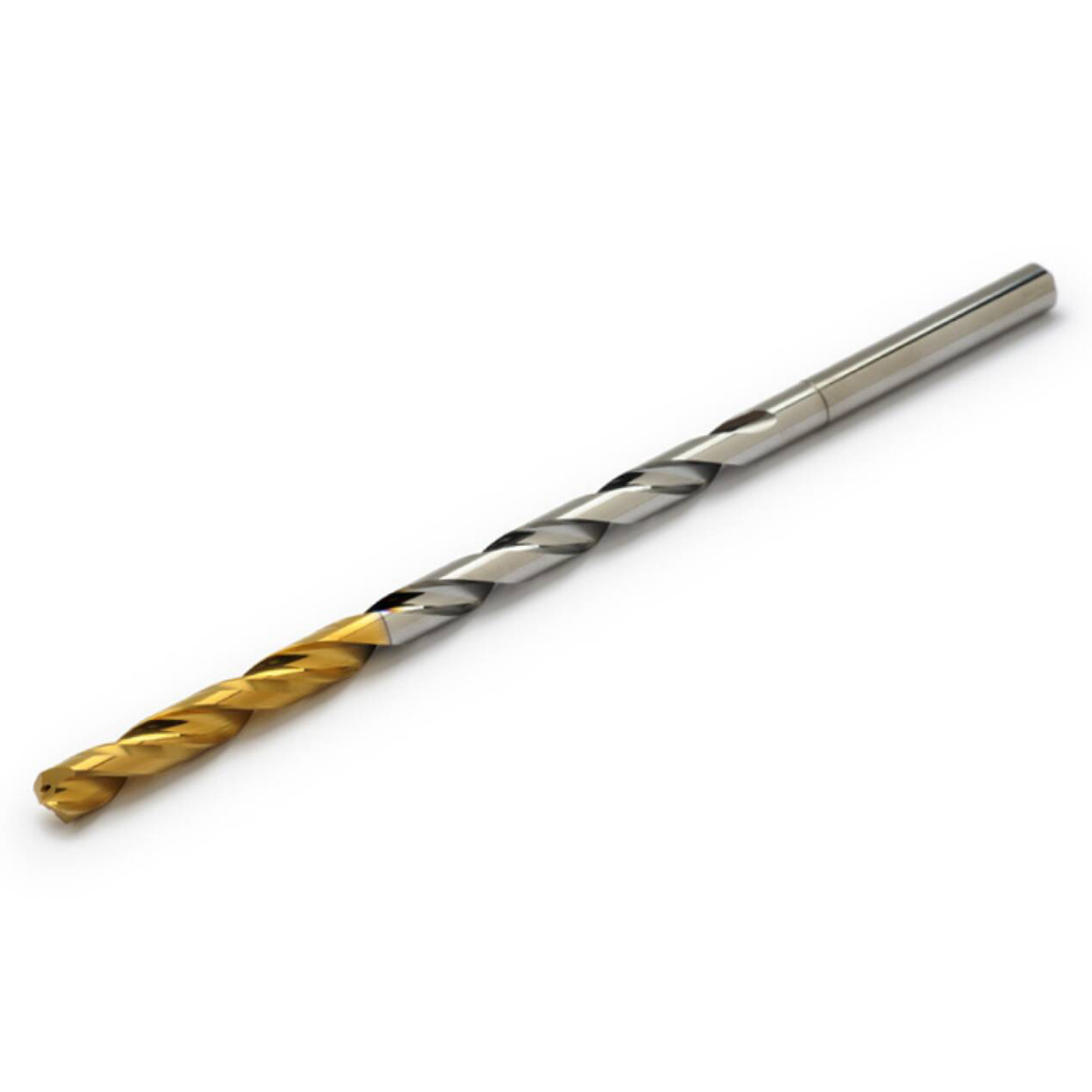

| Product Type | Extra Long Drill Bit |
