Product Specifications
| Manufacturer Part Number | 02694880 |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.532" |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.50mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.709" |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.00mm |
| Protruding Length (Decimal Inch) | 0.669" |
| Protruding Length (mm) | 17.00mm |
| Shank Length (Decimal Inch) | 1.496" |
| Shank Length (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 2.165" |
| Overall Length (mm) | 55.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.197" |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -12.6 Degree |
| Rake Orthogonal Angle (Degree) | -12.6 Degree |
| Maximum Ramping Angle (Degree) | 10 Degree |
| Maximum Rotational Speed (rpm) | 60000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XO.X0602 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Cylindrical |

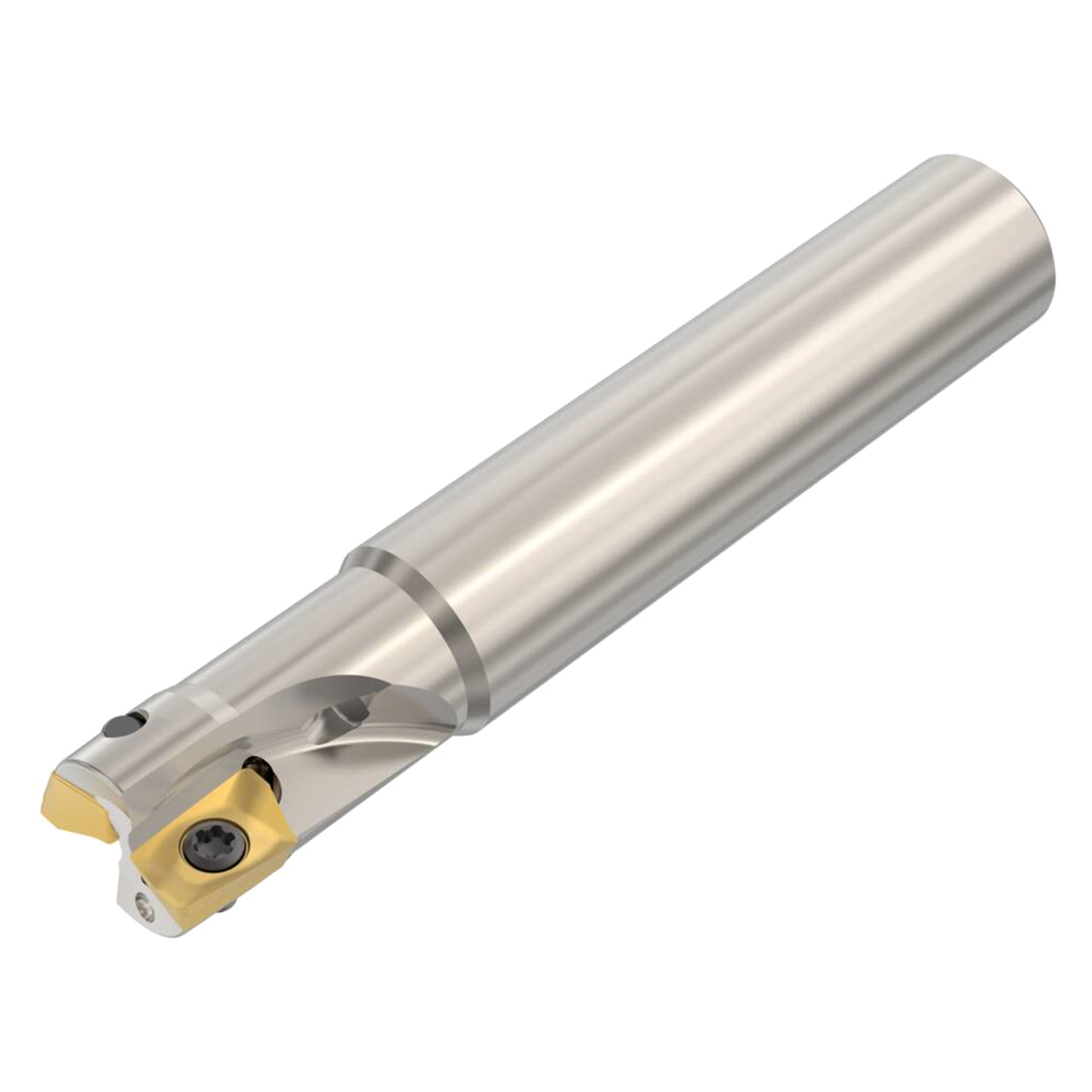

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
9-9/17"
Cutting Diameter (Decimal Inch):
0.3752"
Cutting Diameter (mm):
9.53mm
Shank Type:
Cylindrical
Overall Length (Inch):
55"
Overall Length (Decimal Inch):
2.1654"
Overall Length (mm):
55.00mm
