| Manufacturer Part Number | 02720253 |

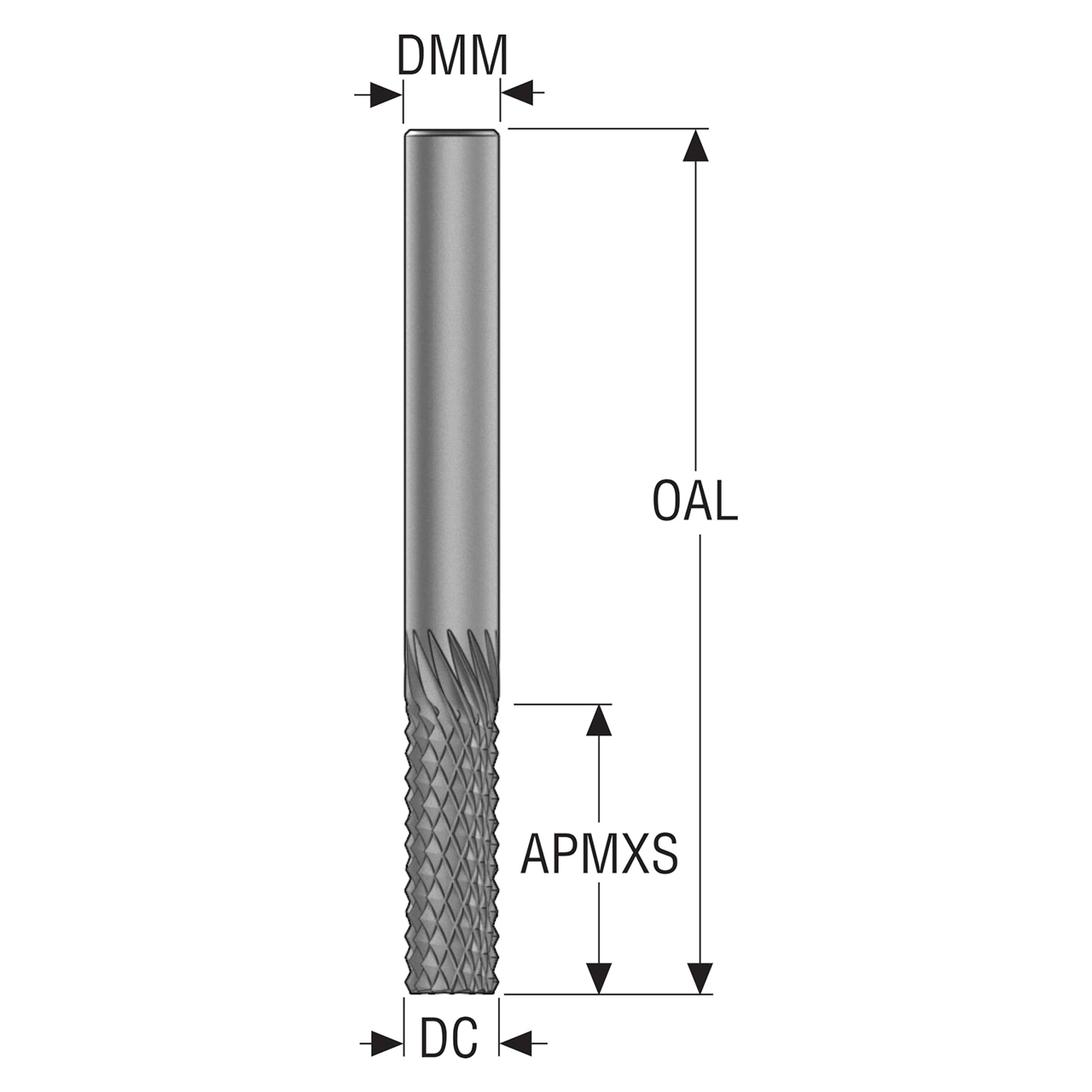

| Cutting Diameter (mm) | 8.00mm |
| Cutting Diameter 1 (mm) | 8.00mm |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Cutting Edge Effective Length (mm) | 24.00mm |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 24.00mm |
| Overall Length (mm) | 75.00mm |
| Number of Flute | 12 |
| Pheripheral Cutting Edge Count | 12 |
| Maximum Depth of Cut (mm) | 24.00mm |
| Axial Runout (mm) | 0.02mm |
| Radial Runout (mm) | 0.02mm |
| Cutting Edge Count | 12 |
| Face Cutting Edge Count | 12 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 25 Degree |
| Rake Radial Angle (Degree) | 7 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Compression |
| Cutting Geometry Type | JC871 |
| Cutting Geometry Type Technical | JC871 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | DURA |

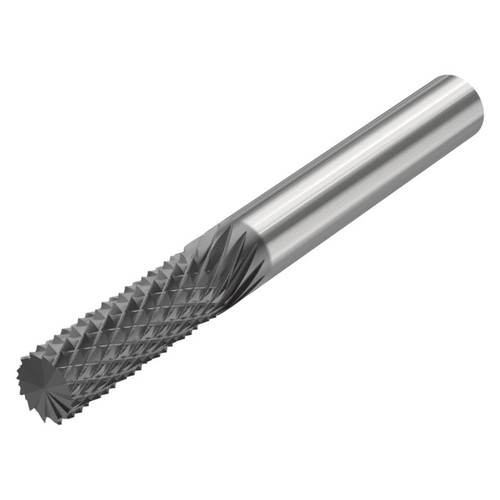

| Product Type | Square End Mill |
