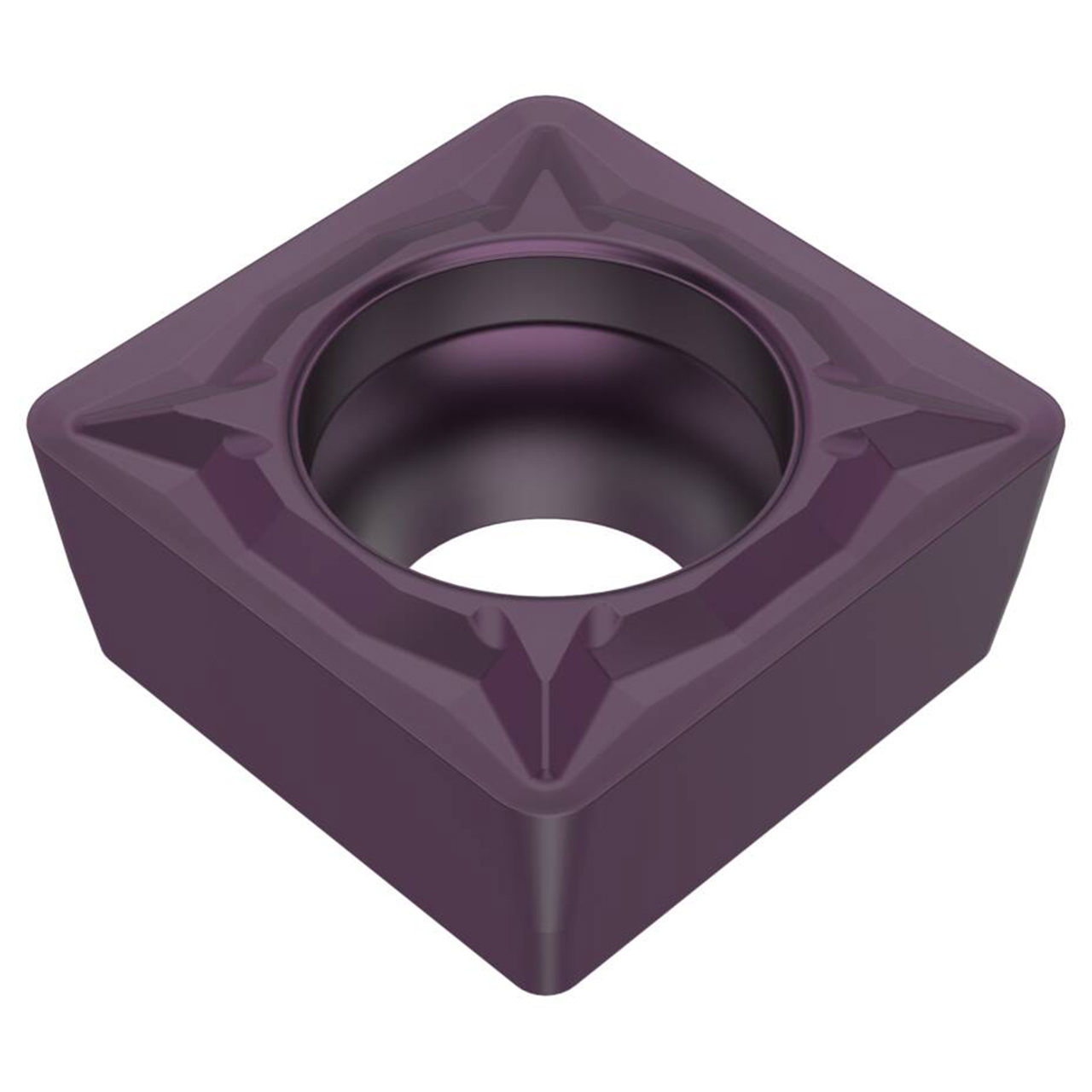

Seco Tools 02754883 | SC09T3 Size x 0.375" Inscribed Circle Diameter x 0.032" Radius x 0.156" Thickness 4 Cutting Edge Carbide Turning Insert

$17.70 $14.02
(You save $3.68)
Brand:
Seco Tools
Material:
Cermet
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.53mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.97mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0320"
Corner Radius (mm):
0.80mm
interval quantity:
10
SKU:
23281088
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Seco Tools 02754883 | SC09T3 Size x 0.375" Inscribed Circle Diameter x 0.032" Radius x 0.156" Thickness 4 Cutting Edge Carbide Turning Insert

Product Specifications
Manufacturer Part Number02754883
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Cutting Edge Effective Length (Decimal Inch)0.343"
Cutting Edge Effective Length (mm)8.70mm
Corner Chamfer Width (mm)0.08mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.156"
Insert Thickness (mm)3.97mm
Clearance Angle Major (Degree)7 Degree
Cutting Edge Count4
Insert Size And ShapeSC09T3
Insert Included Angle (Degree)90 Degree
Insert HandNeutral
MaterialCermet
Product TypeTurning Insert
