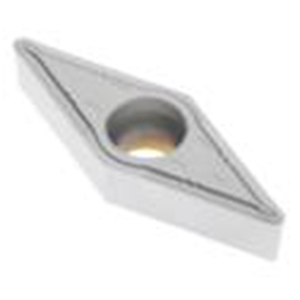

Seco Tools 02960892 | VBMT160408-F1 0.375" Inscribed Circle Diameter 0.032" Radius x 0.187" Thickness 4 Cutting Edge Carbide Turning Insert

$29.20 $23.13
(You save $6.07)
Brand:
Seco Tools
Length (Decimal Inch):
0.6539"
Inscribed Circle (Decimal Inch):
0.3750"
Thickness (Decimal Inch):
0.1874"
Corner Radius (Decimal Inch):
0.0315"
interval quantity:
5
SKU:
23283637
UPC:
Weight:
0.02 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout
Seco Tools 02960892 | VBMT160408-F1 0.375" Inscribed Circle Diameter 0.032" Radius x 0.187" Thickness 4 Cutting Edge Carbide Turning Insert

Product Specifications
Manufacturer Part Number02960892
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Cutting Edge Effective Length (Decimal Inch)0.575"
Cutting Edge Effective Length (mm)14.60mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Clearance Angle Major (Degree)5 Degree
Cutting Edge Count4
Insert Size And ShapeVB1604
Insert Included Angle (Degree)35 Degree
Insert HandNeutral
MaterialCarbide
Product TypeTurning Insert
