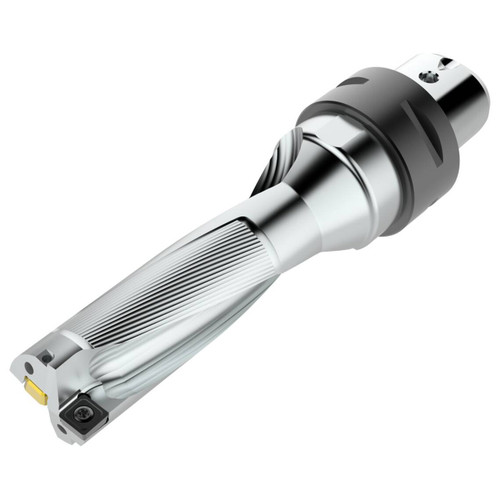

Product Specifications
| Manufacturer Part Number | 03081009 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.991" |
| Minimum Cutting Diameter Internal (mm) | 25.18mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 1.039" |
| Flange Diameter (Decimal Inch) | 1.575" |
| Flange Diameter (mm) | 40.00mm |
| Usable Length (Decimal Inch) | 3.032" |
| Usable Length (mm) | 77.00mm |
| Adjustment Limit Minimum (Decimal Inch) | 0.004" |
| Adjustment Limit Minimum (mm) | 0.11mm |
| Adjustment Limit Maximum (Decimal Inch) | 0.020" |
| Adjustment Limit Maximum (mm) | 0.50mm |
| Shank Type | Seco-Capto |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |
| Product Type | Indexable Insert Drill |
