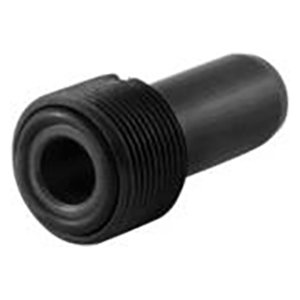

| Manufacturer Part Number | 03103663 |
| Body Diameter 1 (Decimal Inch) | 0.630" |
| Body Diameter 1 (mm) | 16.00mm |
| Thread Diameter Size | M24x1.5 |
| Coolant Entry Diameter (Decimal Inch) | 0.315" |
| Coolant Entry Diameter (mm) | 8.00mm |
| Body Length 1 (Decimal Inch) | 0.630" |
| Body Length 1 (mm) | 16.00mm |
| Body Length 2 (Decimal Inch) | 1.102" |
| Body Length 2 (mm) | 28.00mm |
| Overall Length (Decimal Inch) | 1.732" |
| Overall Length (mm) | 44.00mm |
| Coolant Entry Depth (Decimal Inch) | 0.472" |
| Coolant Entry Depth (mm) | 12.00mm |
| Coolant Entry Thread Size | 16 |
| Body Half Taper Angle Degree) | 1 Degree |
| Connection Size Code | HSK-A100 |
| Product Type | Rotary Tool Holder Hardware |
