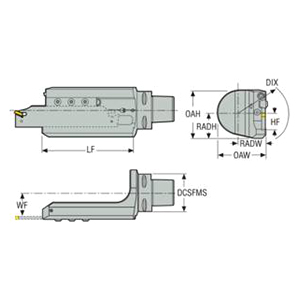

Product Specifications
| Manufacturer Part Number | 03134583 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.347" |
| Maximum Tool Changer Interference Diameter (mm) | 85.00mm |
| Functional Height (Decimal Inch) | 0.787" |
| Functional Height (mm) | 20.00mm |
| Functional Length (Decimal Inch) | 4.803" |
| Functional Length (mm) | 122.00mm |
| Overall Height (Decimal Inch) | 2.303" |
| Overall Height (mm) | 58.50mm |
| Overall Width (Decimal Inch) | 2.205" |
| Overall Width (mm) | 56.00mm |
| Functional Width (Decimal Inch) | 1.024" |
| Functional Width (mm) | 26.00mm |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.260" |
| Radial Body Width (Decimal Inch) | 1.221" |
| Radial Body Width (mm) | 31.00mm |
| Shank Type | Seco-Capto |
| Version (Internal/External/Both) | External |
| Product Type | Indexable Cut-Off Blade for Tool Block |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
