Seco Tools 03201481 | CAT50ADB-ER16-6.000 28.00mm Body Diameter 254.00mm OAL ER 16 Collet Chuck

$280.00 $201.60
(You save $78.40)
Brand:
Seco Tools
interval quantity:
1
SKU:
55075111
UPC:
Weight:
7.94 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 03201481 | CAT50ADB-ER16-6.000 28.00mm Body Diameter 254.00mm OAL ER 16 Collet Chuck

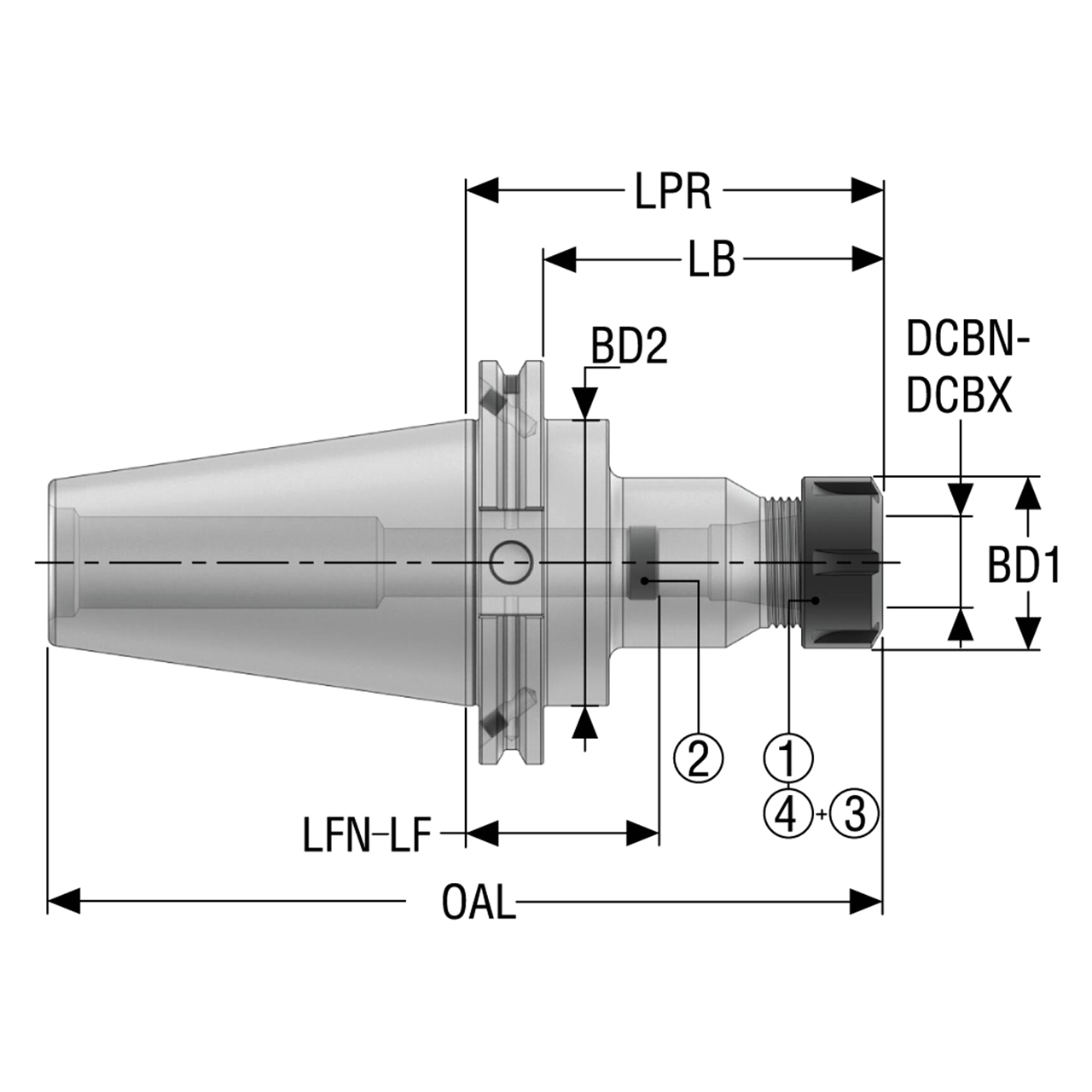

Product Specifications
Manufacturer Part Number03201481
Body Diameter 1 (Decimal Inch)1.102"
Body Diameter 1 (mm)28.00mm
Body Diameter 2 (Decimal Inch)1.087"
Body Diameter 2 (mm)27.60mm
Minimum Connection Bore Diameter (Decimal Inch)0.020"
Minimum Connection Bore Diameter (mm)0.50mm
Maximum Connection Bore Diameter (Decimal Inch)0.394"
Maximum Connection Bore Diameter (mm)10.00mm
Body Length (Decimal Inch)5.250"
Body Length (mm)133.35mm
Functional Length (Decimal Inch)4.425"
Functional Length (mm)112.40mm
Minimum Functional Length (Decimal Inch)1.276"
Protruding Length (Decimal Inch)6.000"
Protruding Length (mm)152.40mm
Overall Length (Decimal Inch)10.000"
Overall Length (mm)254.00mm
Data Chip Provision1
Maximum Rotational Speed (rpm)12000 rpm
Product TypeCollet Chuck
