Seco Tools 03276619 |VBMT160404-M3 0.375" Inscribed Circle Diameter x 0.016" Corner Radius x 0.187" Thickness 2 Cutting Edge Carbide Turning Insert

$29.20 $23.13
(You save $6.07)
Brand:
Seco Tools
Material:
Carbide
Length (Decimal Inch):
0.6539"
Inscribed Circle (Decimal Inch):
0.3750"
Thickness (Decimal Inch):
0.1874"
Corner Radius (Decimal Inch):
0.0157"
interval quantity:
5
SKU:
23287642
UPC:
Weight:
0.02 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout
Seco Tools 03276619 |VBMT160404-M3 0.375" Inscribed Circle Diameter x 0.016" Corner Radius x 0.187" Thickness 2 Cutting Edge Carbide Turning Insert

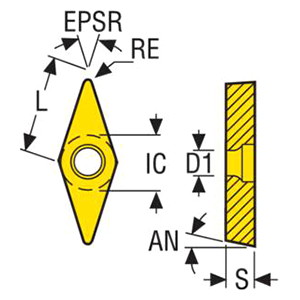

Product Specifications
Manufacturer Part Number03276619
Fixing Hole Diameter (Decimal Inch)0.177"
Fixing Hole Diameter (mm)4.50mm
Inscribed Circle Diameter (Decimal Inch)0.375"
Inscribed Circle Diameter (mm)9.53mm
Cutting Edge Effective Length (Decimal Inch)0.615"
Cutting Edge Effective Length (mm)15.62mm
Theoretical Cutting Edge Length (Decimal Inch)0.654"
Theoretical Cutting Edge Length (mm)16.61mm
Corner Radius (Decimal Inch)0.016"
Corner Radius (mm)0.40mm
Insert Thickness (Decimal Inch)0.187"
Insert Thickness (mm)4.76mm
Cutting Edge Count2
Clearance Angle Major (Degree)5 Degree
Insert Included Angle (Degree)35 Degree
Insert HandNeutral
Insert Size And ShapeVB1604
Insert Shape CodeV
MaterialCarbide
Product TypeTurning Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
