| Manufacturer Part Number | 03301741 |
| Body Diameter (Decimal Inch) | 1.500" |
| Body Diameter (mm) | 38.10mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Minimum Connection Bore Diameter (mm) | 15.88mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Body Length (Decimal Inch) | 4.858" |
| Body Length (mm) | 123.40mm |
| Functional Length Secondary (Decimal Inch) | 5.090" |
| Functional Length Secondary (mm) | 129.29mm |
| Protruding Length (Decimal Inch) | 6.000" |
| Protruding Length (mm) | 152.40mm |
| Clamping Length (Decimal Inch) | 1.870" |
| Clamping Length (mm) | 47.50mm |
| Overall Length (Decimal Inch) | 7.969" |
| Overall Length (mm) | 202.40mm |
| Data Chip Provision | 1 |

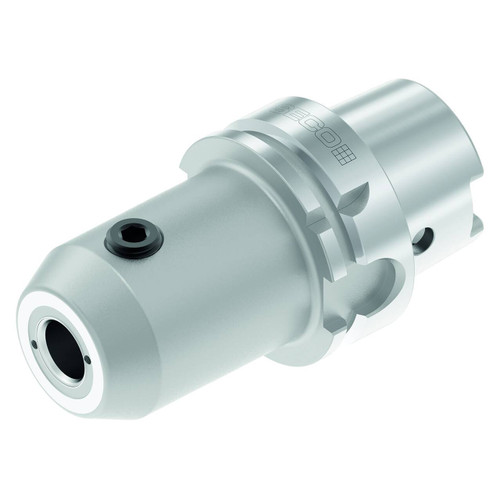

| Product Type | End Mill Holder |
