| Manufacturer Part Number | 10001106 |

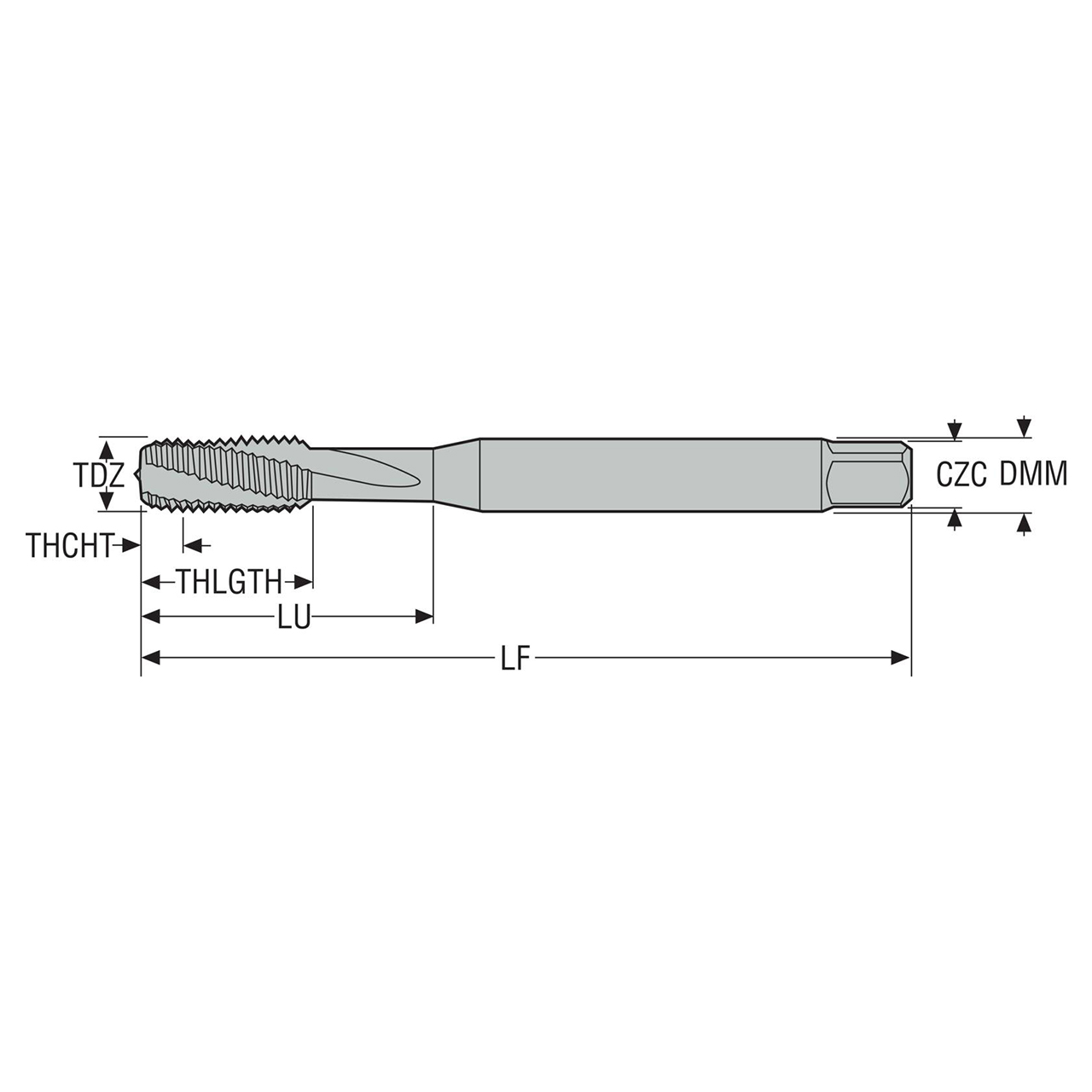

| Thread Diameter (Decimal Inch) | 0.162" |
| Thread Diameter (mm) | 4.10mm |
| Threading Chamfer Length (Decimal Inch) | 0.069" |
| Threading Chamfer Length (mm) | 1.75mm |
| Tap Chamfer Length (Decimal Inch) | 0.069" |
| Tap Chamfer Length (mm) | 1.75mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.177" |
| Connection Diameter Machine Side (mm) | 4.50mm |
| Shank Diameter (Decimal Inch) | 0.177" |
| Shank Diameter (mm) | 4.50mm |
| Functional Length (Decimal Inch) | 2.411" |
| Functional Length (mm) | 61.25mm |
| Usable Length (Decimal Inch) | 0.413" |
| Usable Length (mm) | 10.50mm |
| Overall Length (Decimal Inch) | 2.545" |
| Overall Length (mm) | 64.64mm |
| Thread Length (Decimal Inch) | 0.413" |
| Thread Length (mm) | 10.50mm |
| Thread Diameter Size | M4 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.134" |
| Recommended Premachined Hole Diameter (mm) | 3.40mm |
| Connection Size Code | 4.50X3.40 |
| Connection Size Code Machine Side | 4.50X3.40 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.135" |
| Maximum Premachined Hole Diameter (mm) | 3.42mm |
| Minimum Thread Pitch (Decimal Inch) | 0.028" |
| Minimum Thread Pitch (mm) | 0.70mm |
| Maximum Thread Pitch (Decimal Inch) | 0.028" |
| Maximum Thread Pitch (mm) | 0.70mm |
| Flute Helix Angle (Degree) | 10 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | Uncoated |

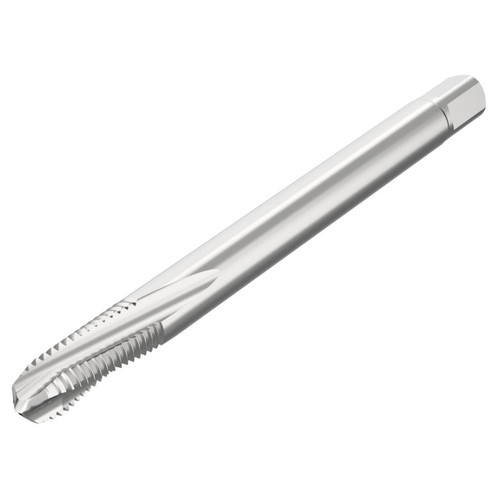

| Product Type | Spiral Flute Tap |
