Seco Tools 10001134 | MTH-M2X0.40ISO6HX-BC-S101 M2 Thread Size x 0.082" Diameter x 0.110" Shank x 1.856" OAL 15 Degree Helix Angle 3 Flute ACN Coated HSS-E-PM Spiral Flute Tap

$67.40 $48.53
(You save $18.87)
Brand:
Seco Tools
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
ACN
Overall Length (Decimal Inch):
1.8560"
Overall Length (mm):
47.14mm
interval quantity:
1
SKU:
17993771
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10001134 | MTH-M2X0.40ISO6HX-BC-S101 M2 Thread Size x 0.082" Diameter x 0.110" Shank x 1.856" OAL 15 Degree Helix Angle 3 Flute ACN Coated HSS-E-PM Spiral Flute Tap

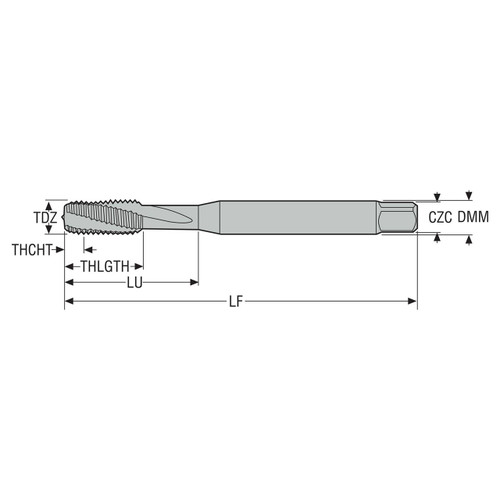

Product Specifications
Manufacturer Part Number10001134
Thread Diameter (Decimal Inch)0.082"
Thread Diameter (mm)2.07mm
Threading Chamfer Length (Decimal Inch)0.039"
Threading Chamfer Length (mm)1.00mm
Tap Chamfer Length (Decimal Inch)0.039"
Connection Diameter Machine Side (Decimal Inch)0.110"
Connection Diameter Machine Side (mm)2.80mm
Shank Diameter (Decimal Inch)0.110"
Shank Diameter (mm)2.80mm
Functional Length (Decimal Inch)1.732"
Functional Length (mm)44.00mm
Usable Length (Decimal Inch)0.315"
Usable Length (mm)8.00mm
Overall Length (Decimal Inch)1.856"
Overall Length (mm)47.14mm
Thread Length (Decimal Inch)0.315"
Thread Length (mm)8.00mm
Thread Diameter SizeM2
Recommended Premachined Hole Diameter (Decimal Inch)0.063"
Recommended Premachined Hole Diameter (mm)1.60mm
Connection Size Code2.80X2.10
Connection Size Code Machine Side2.80X2.10
Maximum Premachined Hole Diameter (Decimal Inch)0.066"
Maximum Premachined Hole Diameter (mm)1.68mm
Minimum Thread Pitch (Decimal Inch)0.016"
Minimum Thread Pitch (mm)0.40mm
Maximum Thread Pitch (Decimal Inch)0.016"
Maximum Thread Pitch (mm)0.40mm
Flute Helix Angle (Degree)15 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingACN
Product TypeSpiral Flute Tap
