| Manufacturer Part Number | 10001161 |
| Thread Diameter (Decimal Inch) | 0.101" |
| Thread Diameter (mm) | 2.58mm |
| Threading Chamfer Length (Decimal Inch) | 0.080" |
| Threading Chamfer Length (mm) | 2.03mm |
| Tap Chamfer Length (Decimal Inch) | 0.080" |
| Tap Chamfer Length (mm) | 2.03mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.110" |
| Connection Diameter Machine Side (mm) | 2.80mm |
| Shank Diameter (Decimal Inch) | 0.110" |
| Shank Diameter (mm) | 2.80mm |
| Functional Length (Decimal Inch) | 1.889" |
| Functional Length (mm) | 47.97mm |
| Usable Length (Decimal Inch) | 0.354" |
| Usable Length (mm) | 9.00mm |
| Overall Length (Decimal Inch) | 2.062" |
| Overall Length (mm) | 52.37mm |
| Thread Length (Decimal Inch) | 0.354" |
| Thread Length (mm) | 9.00mm |
| Thread Diameter Size | M2.5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.083" |
| Recommended Premachined Hole Diameter (mm) | 2.10mm |
| Connection Size Code | 2.80X2.10 |
| Connection Size Code Machine Side | 2.80X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.084" |
| Maximum Premachined Hole Diameter (mm) | 2.14mm |
| Minimum Thread Pitch (Decimal Inch) | 0.018" |
| Minimum Thread Pitch (mm) | 0.45mm |
| Maximum Thread Pitch (Decimal Inch) | 0.018" |
| Maximum Thread Pitch (mm) | 0.45mm |
| Number of Flute | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | ISO-S |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | ACN |

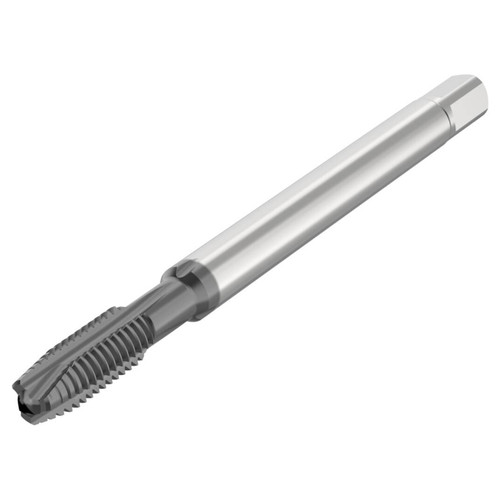

| Product Type | Spiral Point Tap |
