Seco Tools 10001162 | MTP-M3X0.50ISO6HX-TB-S001 M3 Thread Size x 0.121" Diameter x 0.138" Shank x 2.254" OAL 2 Flute ACN Coated HSS-E-PM Spiral Point Tap

$64.20 $46.22
(You save $17.98)
Brand:
Seco Tools
Thread Size:
M3
Number of Flutes:
2
Thread Standard:
M
Finish/Coating:
ACN
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17993795
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10001162 | MTP-M3X0.50ISO6HX-TB-S001 M3 Thread Size x 0.121" Diameter x 0.138" Shank x 2.254" OAL 2 Flute ACN Coated HSS-E-PM Spiral Point Tap

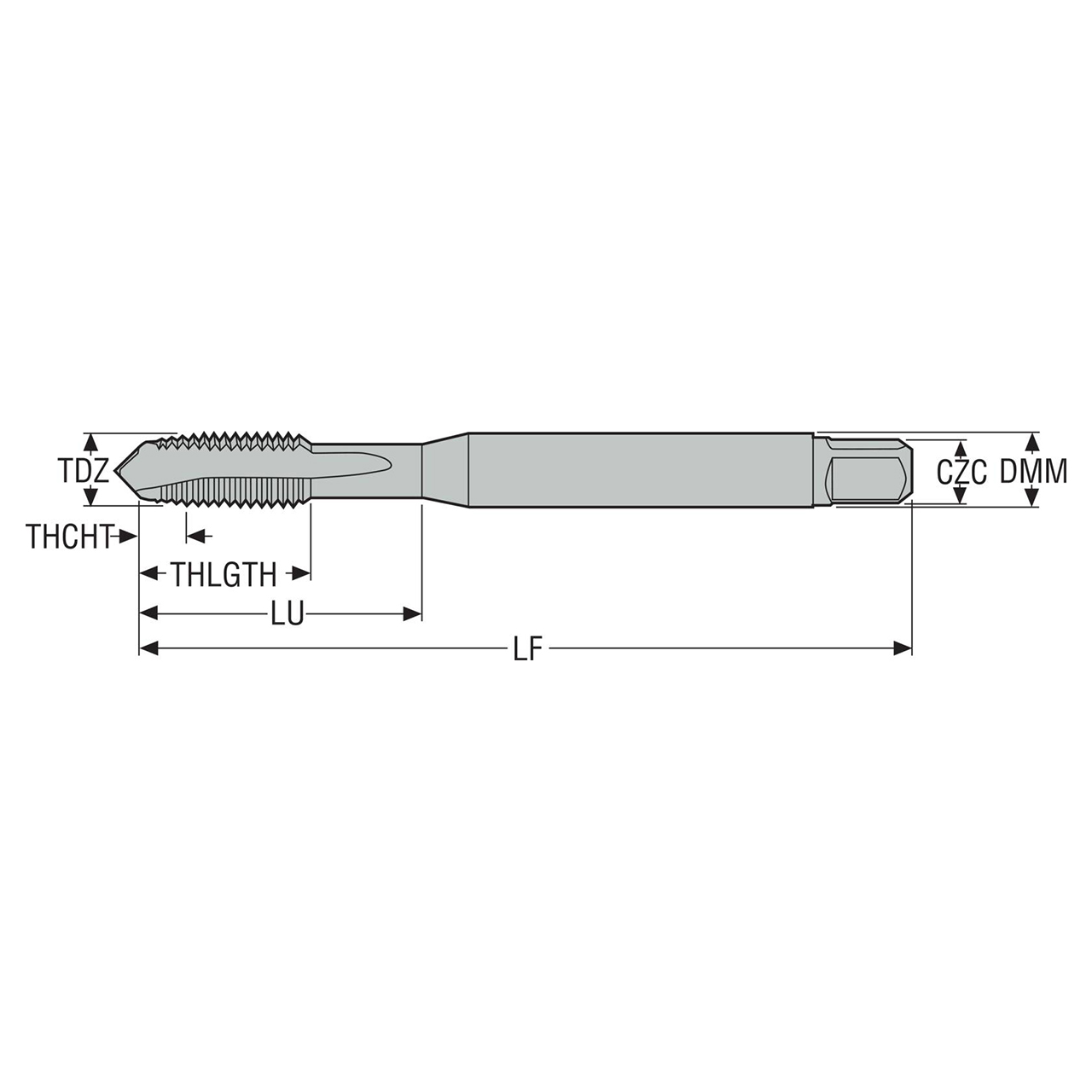

Product Specifications
Manufacturer Part Number10001162
Thread Diameter (Decimal Inch)0.121"
Thread Diameter (mm)3.08mm
Threading Chamfer Length (Decimal Inch)0.089"
Threading Chamfer Length (mm)2.25mm
Tap Chamfer Length (Decimal Inch)0.089"
Tap Chamfer Length (mm)2.25mm
Connection Diameter Machine Side (Decimal Inch)0.138"
Connection Diameter Machine Side (mm)3.50mm
Shank Diameter (Decimal Inch)0.138"
Shank Diameter (mm)3.50mm
Functional Length (Decimal Inch)2.116"
Functional Length (mm)53.75mm
Usable Length (Decimal Inch)0.394"
Usable Length (mm)10.00mm
Overall Length (Decimal Inch)2.254"
Overall Length (mm)57.24mm
Thread Length (Decimal Inch)0.394"
Thread Length (mm)10.00mm
Thread Diameter SizeM3
Recommended Premachined Hole Diameter (Decimal Inch)0.098"
Recommended Premachined Hole Diameter (mm)2.50mm
Connection Size Code3.50X2.70
Connection Size Code Machine Side3.50X2.70
Maximum Premachined Hole Diameter (Decimal Inch)0.102"
Maximum Premachined Hole Diameter (mm)2.60mm
Minimum Thread Pitch (Decimal Inch)0.020"
Minimum Thread Pitch (mm)0.50mm
Maximum Thread Pitch (Decimal Inch)0.020"
Maximum Thread Pitch (mm)0.50mm
Number of Flute2
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeB
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingACN
Product TypeSpiral Point Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
