Product Specifications

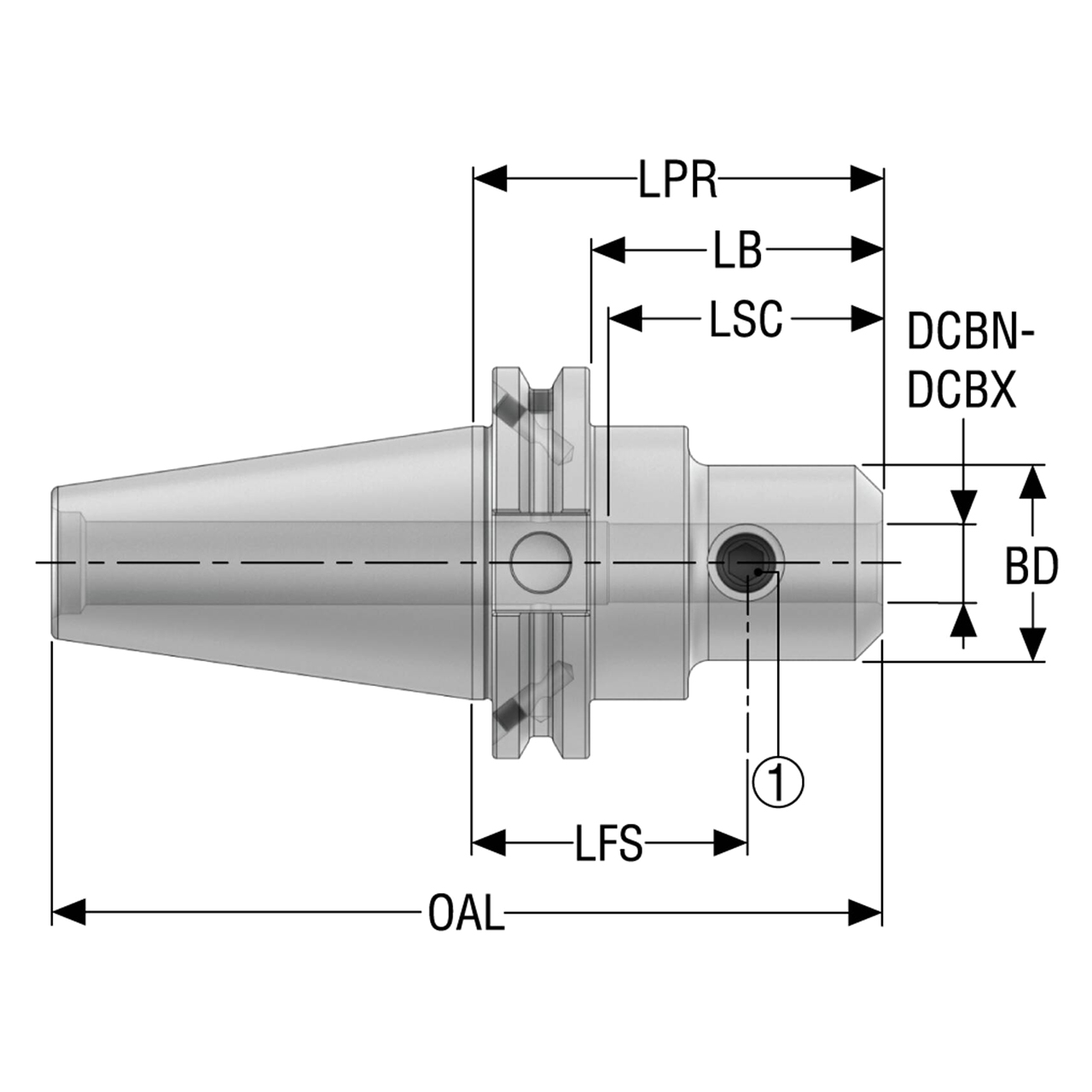

| Manufacturer Part Number | 10008188 |
| Body Diameter (Decimal Inch) | 1.890" |
| Body Diameter (mm) | 48.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.630" |
| Maximum Connection Bore Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 2.000" |
| Body Length (mm) | 50.80mm |
| Functional Length Secondary (Decimal Inch) | 1.805" |
| Functional Length Secondary (mm) | 45.85mm |
| Protruding Length (Decimal Inch) | 2.750" |
| Protruding Length (mm) | 69.85mm |
| Clamping Length (Decimal Inch) | 1.850" |
| Clamping Length (mm) | 47.00mm |
| Overall Length (Decimal Inch) | 5.437" |
| Overall Length (mm) | 138.10mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 18000 rpm |
| Product Type | End Mill Holder |
