| Manufacturer Part Number | 10068149 |
| Cutting Diameter (mm) | 29.10mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 49.00mm |
| Maximum Cutting Diameter (mm) | 52.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 102.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 81.10mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.80mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Programming Radius (mm) | 4.02mm |
| Uncut Thickness (mm) | 1.4 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Radial Angle (Degree) | -4 Degree |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Tool Cutting Edge Angle (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 11 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 11 Degree |
| Maximum Ramping Angle (Degree) | 3.2 Degree |
| Maximum Rotational Speed (rpm) | 10500 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

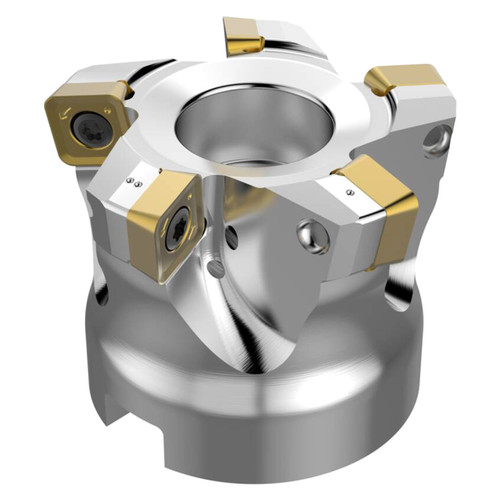

| Product Type | Indexable High-Feed End Mill |
