Product Specifications
| Manufacturer Part Number | 10138120 |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 9.60mm |
| Functional Length (mm) | 50.00mm |
| Length Variant Cataloque | 5 |
| Overall Length (mm) | 100.00mm |
| Body Half Taper Angle 2 (Degree) | 12.2 Degree |
| Maximum Rotational Speed (rpm) | 26000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E10 |
| Connection Size Code Workpiece Side | E10 |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |

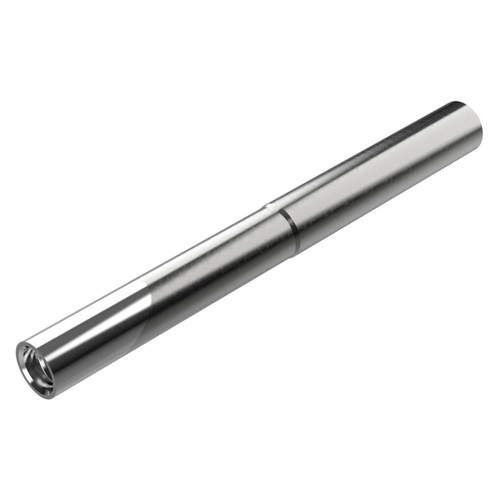

| Product Type | Replaceable Tip Milling Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Type:
Cylindrical
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3900"
Shank Diameter (mm):
10.00mm
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
interval quantity:
1
