Seco Tools 10138993 | T34-R45H01E03-4X0.7-65R M4 Thread Size x 0.158" Diameter x 0.177" Shank x 2.480" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$60.90 $43.85
(You save $17.05)
Brand:
Seco Tools
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
interval quantity:
1
SKU:
17993878
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10138993 | T34-R45H01E03-4X0.7-65R M4 Thread Size x 0.158" Diameter x 0.177" Shank x 2.480" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

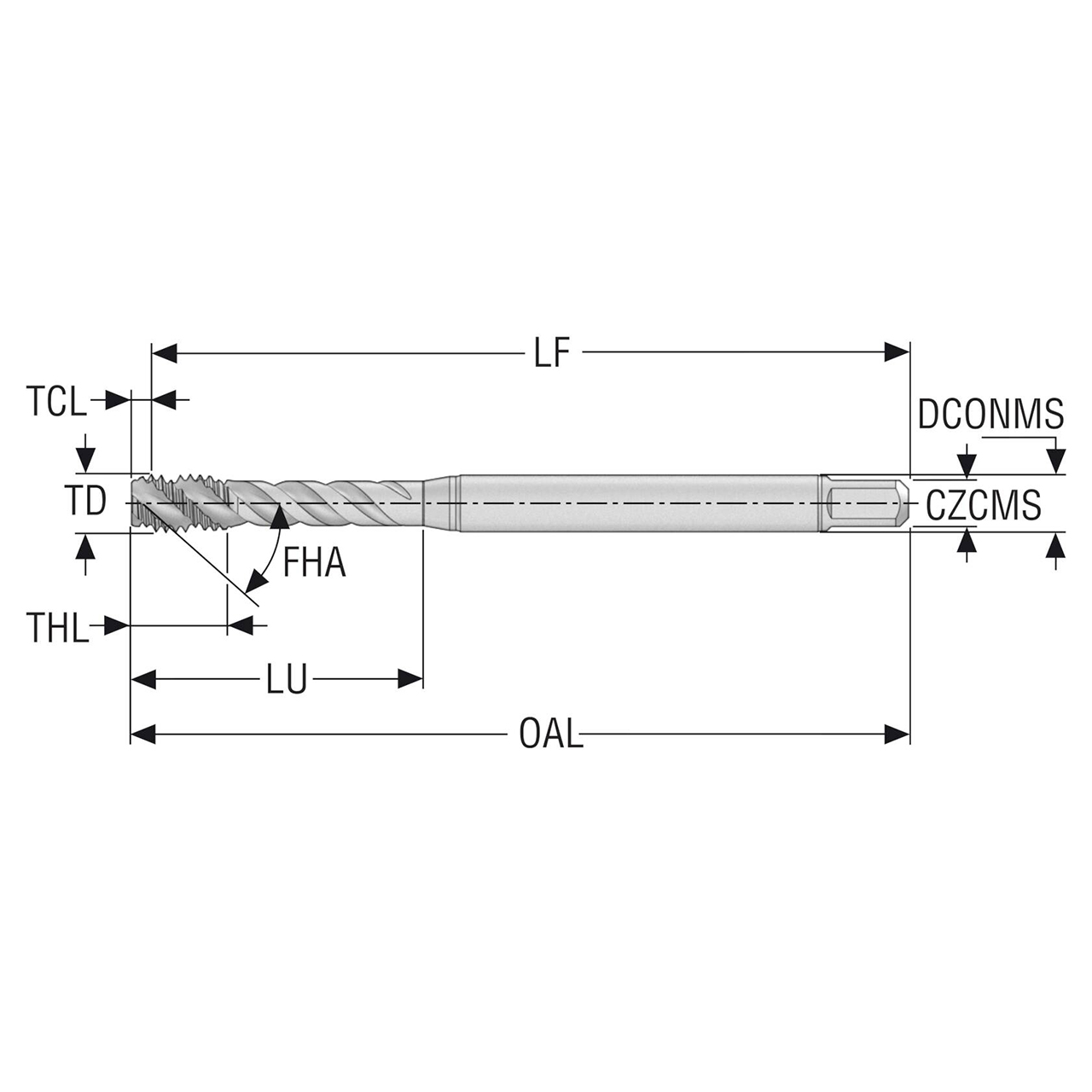

Product Specifications
Manufacturer Part Number10138993
Thread Diameter (Decimal Inch)0.158"
Thread Diameter (mm)4.00mm
Threading Chamfer Length (Decimal Inch)0.047"
Threading Chamfer Length (mm)1.18mm
Tap Chamfer Length (Decimal Inch)0.047"
Tap Chamfer Length (mm)1.18mm
Connection Diameter Machine Side (Decimal Inch)0.177"
Connection Diameter Machine Side (mm)4.50mm
Shank Diameter (Decimal Inch)0.177"
Shank Diameter (mm)4.50mm
Functional Length (Decimal Inch)2.434"
Functional Length (mm)61.82mm
Usable Length (Decimal Inch)0.827"
Usable Length (mm)21.00mm
Overall Length (Decimal Inch)2.480"
Overall Length (mm)63.00mm
Thread Length (Decimal Inch)0.276"
Thread Length (mm)7.00mm
Thread Diameter SizeM4
Recommended Premachined Hole Diameter (Decimal Inch)0.130"
Recommended Premachined Hole Diameter (mm)3.30mm
Connection Size Code4.50X3.40
Connection Size Code Machine Side4.50X3.40
Maximum Premachined Hole Diameter (Decimal Inch)0.135"
Maximum Premachined Hole Diameter (mm)3.42mm
Minimum Thread Pitch (Decimal Inch)0.028"
Minimum Thread Pitch (mm)0.70mm
Maximum Thread Pitch (Decimal Inch)0.028"
Maximum Thread Pitch (mm)0.70mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeE
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap
