Seco Tools 10139050 | T34-PH08B06-7/16-14-22R UNC7/16-14 Thread Size x 0.438" Diameter x 0.315" Shank x 3.937" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

$100.00 $69.00
(You save $31.00)
Brand:
Seco Tools
Thread Size:
UNC7/16-14
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Standard:
UNC
interval quantity:
1
SKU:
17993934
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139050 | T34-PH08B06-7/16-14-22R UNC7/16-14 Thread Size x 0.438" Diameter x 0.315" Shank x 3.937" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

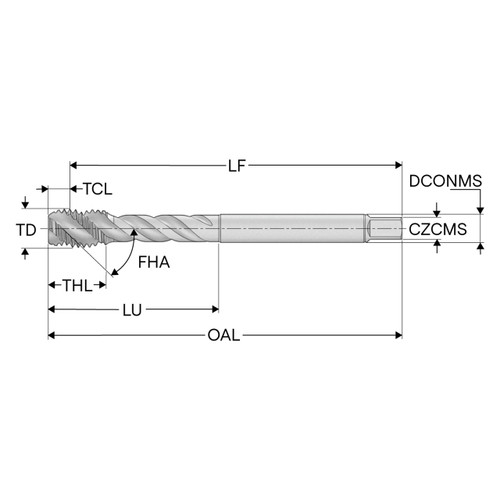

Product Specifications
Manufacturer Part Number10139050
Thread Diameter (Decimal Inch)0.438"
Thread Diameter (mm)11.11mm
Threading Chamfer Length (Decimal Inch)0.329"
Threading Chamfer Length (mm)8.36mm
Tap Chamfer Length (Decimal Inch)0.329"
Tap Chamfer Length (mm)8.36mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.608"
Functional Length (mm)91.64mm
Usable Length (Decimal Inch)2.992"
Usable Length (mm)76.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeUNC7/16-14
Recommended Premachined Hole Diameter (Decimal Inch)0.366"
Recommended Premachined Hole Diameter (mm)9.30mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.376"
Maximum Premachined Hole Diameter (mm)9.55mm
Minimum Threads Per Inch (mm)14.00mm
Maximum Threads Per Inch (mm)14.00mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeB
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeStraight Flute Tap
