Seco Tools 10139067 | T34-R45H09C03-4-48-22R UNF4-48 Thread Size x 0.112" Diameter x 0.138" Shank x 2.252" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

$59.89
Brand:
Seco Tools
Thread Size:
UNF4-48
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2520"
Overall Length (mm):
57.20mm
interval quantity:
1
SKU:
17993951
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139067 | T34-R45H09C03-4-48-22R UNF4-48 Thread Size x 0.112" Diameter x 0.138" Shank x 2.252" OAL 45 Degree Helix Angle 3 Flute TiAIN+WC/C Coated HSS-E-PM Spiral Flute Tap

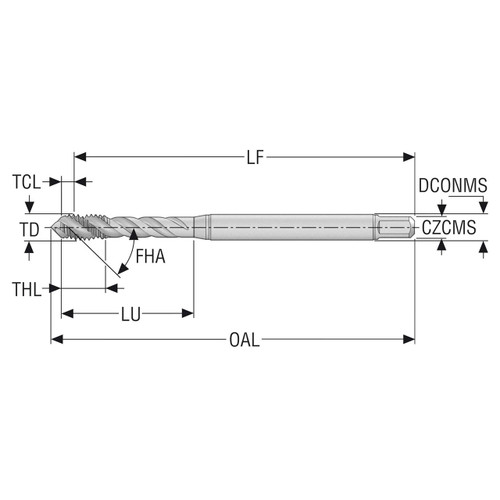

Product Specifications
Manufacturer Part Number10139067
Thread Diameter (Decimal Inch)0.112"
Thread Diameter (mm)2.85mm
Threading Chamfer Length (Decimal Inch)0.051"
Threading Chamfer Length (mm)1.29mm
Tap Chamfer Length (Decimal Inch)0.051"
Tap Chamfer Length (mm)1.29mm
Connection Diameter Machine Side (Decimal Inch)0.138"
Connection Diameter Machine Side (mm)3.50mm
Shank Diameter (Decimal Inch)0.138"
Shank Diameter (mm)3.50mm
Functional Length (Decimal Inch)2.154"
Functional Length (mm)54.71mm
Usable Length (Decimal Inch)0.709"
Usable Length (mm)18.00mm
Overall Length (Decimal Inch)2.252"
Overall Length (mm)57.20mm
Thread Length (Decimal Inch)0.197"
Thread Length (mm)5.00mm
Thread Diameter SizeUNF4-48
Recommended Premachined Hole Diameter (Decimal Inch)0.095"
Recommended Premachined Hole Diameter (mm)2.40mm
Connection Size Code3.50X2.70
Connection Size Code Machine Side3.50X2.70
Maximum Premachined Hole Diameter (Decimal Inch)0.097"
Maximum Premachined Hole Diameter (mm)2.46mm
Minimum Threads Per Inch (mm)48.00mm
Maximum Threads Per Inch (mm)48.00mm
Flute Helix Angle (Degree)45 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2BX
Threading Chamfer TypeC
Thread Form TypeUNF
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeSpiral Flute Tap
