Seco Tools 10139185 | T32-R40N01C07-10X1.5-63R M10 Thread Size x 0.394" Diameter x 0.276" Shank x 7.874" OAL 40 Degree Helix Angle 3 Flute TiAIN+TiN Coated HSS-E Spiral Flute Tap

$160.00 $115.20
(You save $44.80)
Brand:
Seco Tools
Number of Flutes:
3
Material:
HSS-E
Finish/Coating:
TiAIN+TiN
Overall Length (Inch):
7-7/8"
Overall Length (Decimal Inch):
7.8740"
Overall Length (mm):
200.00mm
interval quantity:
1
SKU:
17994064
UPC:
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139185 | T32-R40N01C07-10X1.5-63R M10 Thread Size x 0.394" Diameter x 0.276" Shank x 7.874" OAL 40 Degree Helix Angle 3 Flute TiAIN+TiN Coated HSS-E Spiral Flute Tap

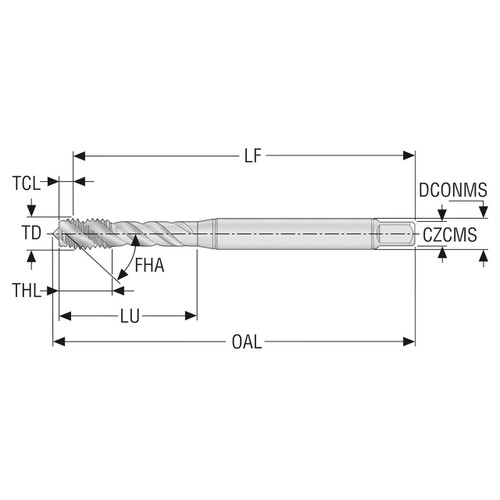

Product Specifications
Manufacturer Part Number10139185
Thread Diameter (Decimal Inch)0.394"
Thread Diameter (mm)10.00mm
Threading Chamfer Length (Decimal Inch)0.148"
Threading Chamfer Length (mm)3.76mm
Tap Chamfer Length (Decimal Inch)0.148"
Tap Chamfer Length (mm)3.76mm
Connection Diameter Machine Side (Decimal Inch)0.276"
Connection Diameter Machine Side (mm)7.00mm
Shank Diameter (Decimal Inch)0.276"
Shank Diameter (mm)7.00mm
Functional Length (Decimal Inch)7.726"
Functional Length (mm)196.24mm
Usable Length (Decimal Inch)6.969"
Usable Length (mm)177.00mm
Overall Length (Decimal Inch)7.874"
Overall Length (mm)200.00mm
Thread Length (Decimal Inch)0.669"
Thread Length (mm)17.00mm
Thread Diameter SizeM10
Recommended Premachined Hole Diameter (Decimal Inch)0.335"
Recommended Premachined Hole Diameter (mm)8.50mm
Connection Size Code7.00X5.50
Connection Size Code Machine Side7.00X5.50
Maximum Premachined Hole Diameter (Decimal Inch)0.342"
Maximum Premachined Hole Diameter (mm)8.68mm
Minimum Thread Pitch (Decimal Inch)0.059"
Minimum Thread Pitch (mm)1.50mm
Maximum Thread Pitch (Decimal Inch)0.059"
Maximum Thread Pitch (mm)1.50mm
Flute Helix Angle (Degree)40 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6H
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT32
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E
CoatingTiAIN+TiN
Product TypeSpiral Flute Tap
