Seco Tools 10139191 | T33-FN01C03-3X0.5-65R M3 Thread Size x 3.00mm Diameter x 3.50mm Shank x 57.20mm OAL TiAIN+TiN Coated HSS-E-PM Thread Forming Tap

$77.10 $53.20
(You save $23.90)
Brand:
Seco Tools
Thread Size:
M3
Finish/Coating:
TiAIN+TiN
Material:
HSS-E-PM
Thread Standard:
M
interval quantity:
1
SKU:
17994069
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139191 | T33-FN01C03-3X0.5-65R M3 Thread Size x 3.00mm Diameter x 3.50mm Shank x 57.20mm OAL TiAIN+TiN Coated HSS-E-PM Thread Forming Tap

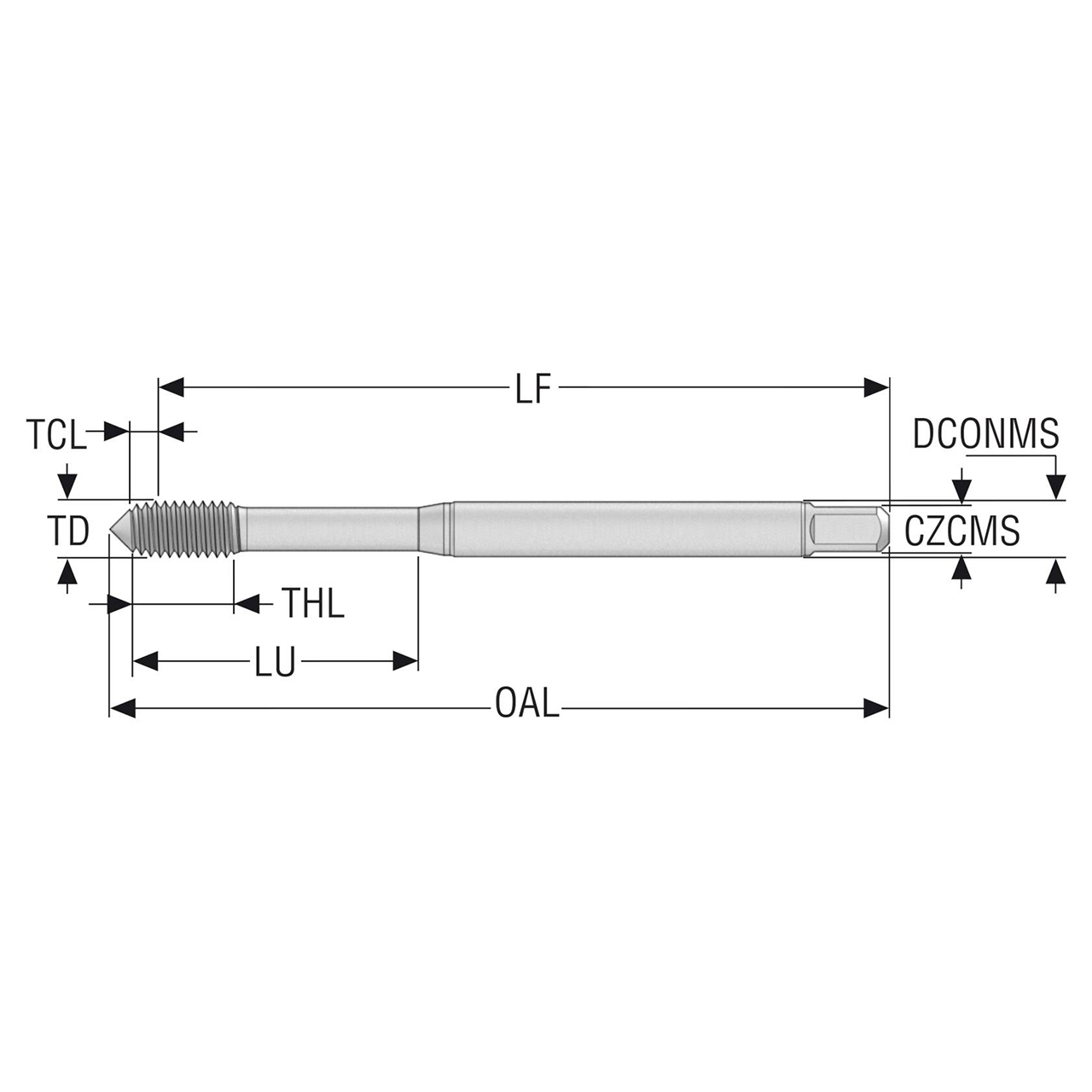

Product Specifications
Manufacturer Part Number10139191
Thread Diameter (Decimal Inch)0.118"
Thread Diameter (mm)3.00mm
Threading Chamfer Length (Decimal Inch)0.047"
Threading Chamfer Length (mm)1.20mm
Tap Chamfer Length (Decimal Inch)0.047"
Tap Chamfer Length (mm)1.20mm
Connection Diameter Machine Side (Decimal Inch)0.138"
Connection Diameter Machine Side (mm)3.50mm
Shank Diameter (Decimal Inch)0.138"
Shank Diameter (mm)3.50mm
Functional Length (Decimal Inch)2.158"
Functional Length (mm)54.80mm
Usable Length (Decimal Inch)0.709"
Usable Length (mm)18.00mm
Overall Length (Decimal Inch)2.252"
Overall Length (mm)57.20mm
Thread Length (Decimal Inch)0.394"
Thread Length (mm)10.00mm
Thread Diameter SizeM3
Recommended Premachined Hole Diameter (Decimal Inch)0.110"
Recommended Premachined Hole Diameter (mm)2.80mm
Connection Size Code3.50X2.70
Connection Size Code Machine Side3.50X2.70
Maximum Premachined Hole Diameter (Decimal Inch)0.110"
Maximum Premachined Hole Diameter (mm)2.80mm
Minimum Thread Pitch (Decimal Inch)0.020"
Minimum Thread Pitch (mm)0.50mm
Maximum Thread Pitch (Decimal Inch)0.020"
Maximum Thread Pitch (mm)0.50mm
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT33
Cutting Geometry Type TechnicalNone
MaterialHSS-E-PM
CoatingTiAIN+TiN
Product TypeThread Forming Tap
