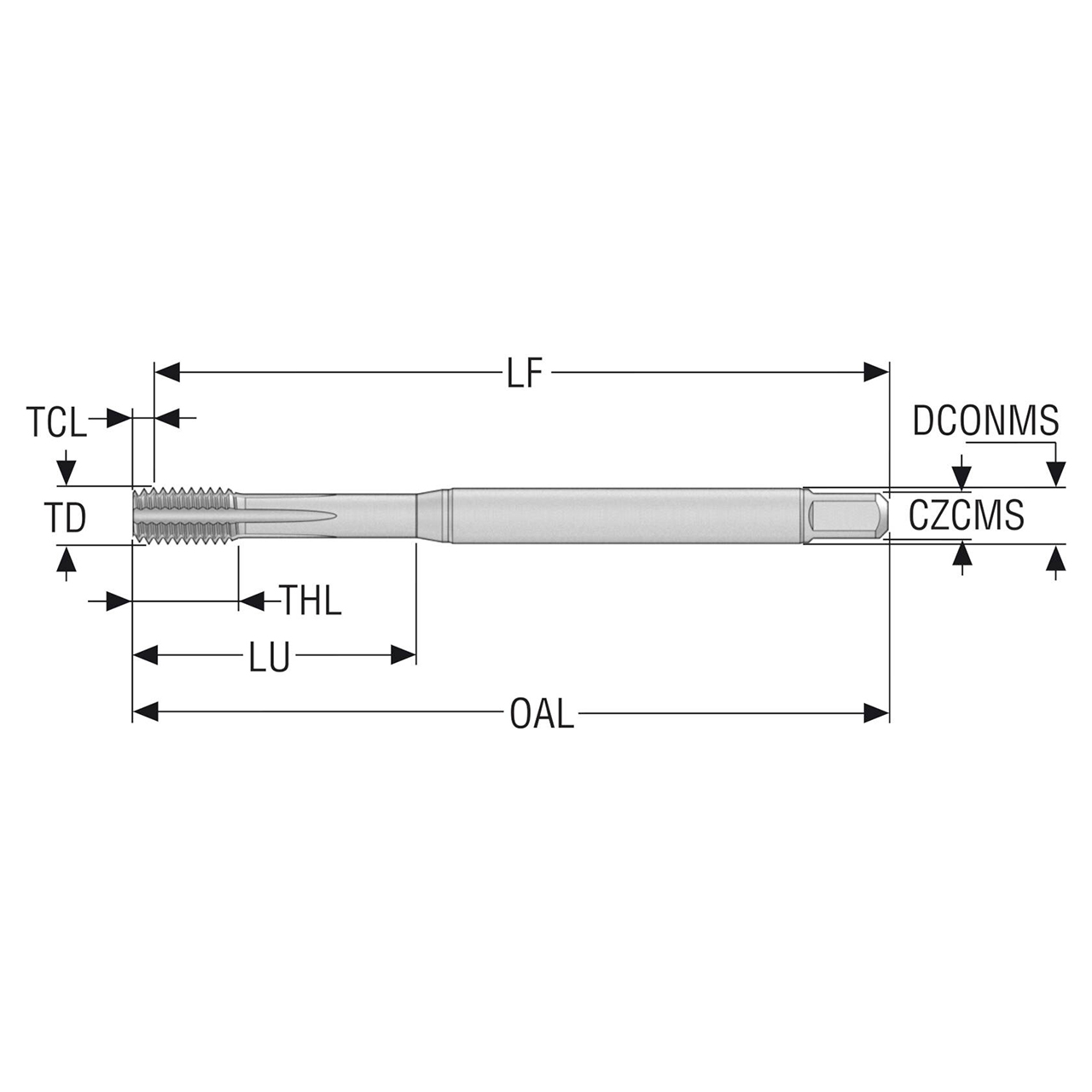

| Manufacturer Part Number | 10139288 |
| Thread Diameter (Decimal Inch) | 0.118" |
| Thread Diameter (mm) | 3.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.047" |
| Threading Chamfer Length (mm) | 1.20mm |
| Tap Chamfer Length (Decimal Inch) | 0.047" |
| Tap Chamfer Length (mm) | 1.20mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.138" |
| Connection Diameter Machine Side (mm) | 3.50mm |
| Shank Diameter (Decimal Inch) | 0.138" |
| Shank Diameter (mm) | 3.50mm |
| Functional Length (Decimal Inch) | 2.158" |
| Functional Length (mm) | 54.80mm |
| Usable Length (Decimal Inch) | 0.709" |
| Usable Length (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 2.205" |
| Overall Length (mm) | 56.00mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | M3 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.110" |
| Recommended Premachined Hole Diameter (mm) | 2.80mm |
| Connection Size Code | 3.50X2.70 |
| Connection Size Code Machine Side | 3.50X2.70 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.110" |
| Maximum Premachined Hole Diameter (mm) | 2.80mm |
| Minimum Thread Pitch (Decimal Inch) | 0.020" |
| Minimum Thread Pitch (mm) | 0.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.020" |
| Maximum Thread Pitch (mm) | 0.50mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | E |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E-PM |
| Coating | TiCN |

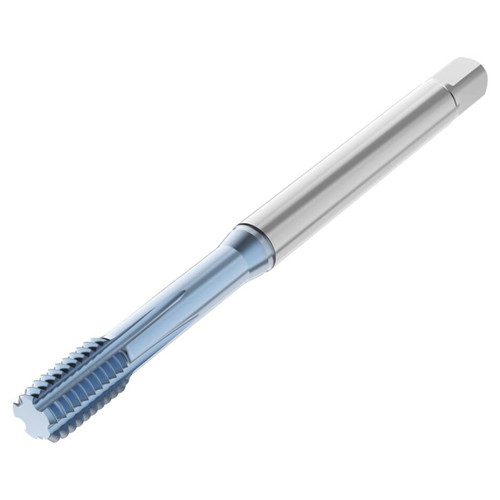

| Product Type | Thread Forming Tap |
