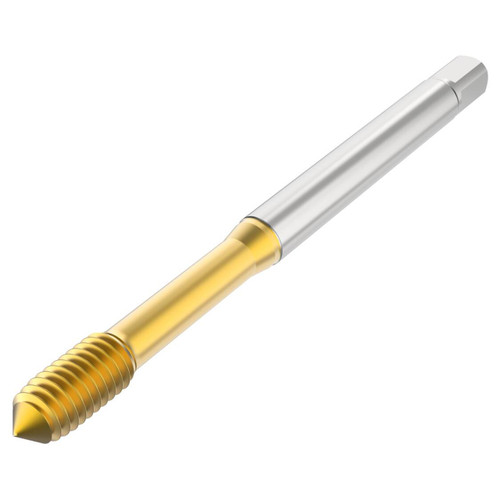

Seco Tools 10139193 | T33-FN01C03-5X0.8-65R M5 Thread Size x 5.00mm Diameter x 6.00mm Shank x 72.00mm OAL TiAIN+TiN Coated HSS-E-PM Thread Forming Tap

$57.62
Brand:
Seco Tools
Thread Size:
M5
Finish/Coating:
TiAIN+TiN
Material:
HSS-E-PM
Thread Standard:
M
interval quantity:
1
SKU:
17994071
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part Number10139193
Thread Diameter (Decimal Inch)0.197"
Thread Diameter (mm)5.00mm
Threading Chamfer Length (Decimal Inch)0.083"
Threading Chamfer Length (mm)2.10mm
Tap Chamfer Length (Decimal Inch)0.083"
Tap Chamfer Length (mm)2.10mm
Connection Diameter Machine Side (Decimal Inch)0.236"
Connection Diameter Machine Side (mm)6.00mm
Shank Diameter (Decimal Inch)0.236"
Shank Diameter (mm)6.00mm
Functional Length (Decimal Inch)2.673"
Functional Length (mm)67.90mm
Usable Length (Decimal Inch)0.984"
Usable Length (mm)25.00mm
Overall Length (Decimal Inch)2.835"
Overall Length (mm)72.00mm
Thread Length (Decimal Inch)0.315"
Thread Length (mm)8.00mm
Thread Diameter SizeM5
Recommended Premachined Hole Diameter (Decimal Inch)0.183"
Recommended Premachined Hole Diameter (mm)4.65mm
Connection Size Code6.00X4.90
Connection Size Code Machine Side6.00X4.90
Maximum Premachined Hole Diameter (Decimal Inch)0.183"
Maximum Premachined Hole Diameter (mm)4.65mm
Minimum Thread Pitch (Decimal Inch)0.032"
Minimum Thread Pitch (mm)0.80mm
Maximum Thread Pitch (Decimal Inch)0.032"
Maximum Thread Pitch (mm)0.80mm
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT33
Cutting Geometry Type TechnicalNone
MaterialHSS-E-PM
CoatingTiAIN+TiN
Product TypeThread Forming Tap
