Seco Tools 10139204 | T33-FSN01C03-2X0.4-65R M2 Thread Size x 2.00mm Diameter x 2.80mm Shank x 46.30mm OAL 3 Flute TiAIN+TiN Coated HSS-PM Thread Forming Tap

$120.00 $82.80
(You save $37.20)
Brand:
Seco Tools
Thread Size:
M2
Number of Flutes:
3
Finish/Coating:
TiAIN+TiN
Material:
HSS-PM
Thread Standard:
M
interval quantity:
1
SKU:
17994080
UPC:
Weight:
0.00 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Seco Tools 10139204 | T33-FSN01C03-2X0.4-65R M2 Thread Size x 2.00mm Diameter x 2.80mm Shank x 46.30mm OAL 3 Flute TiAIN+TiN Coated HSS-PM Thread Forming Tap

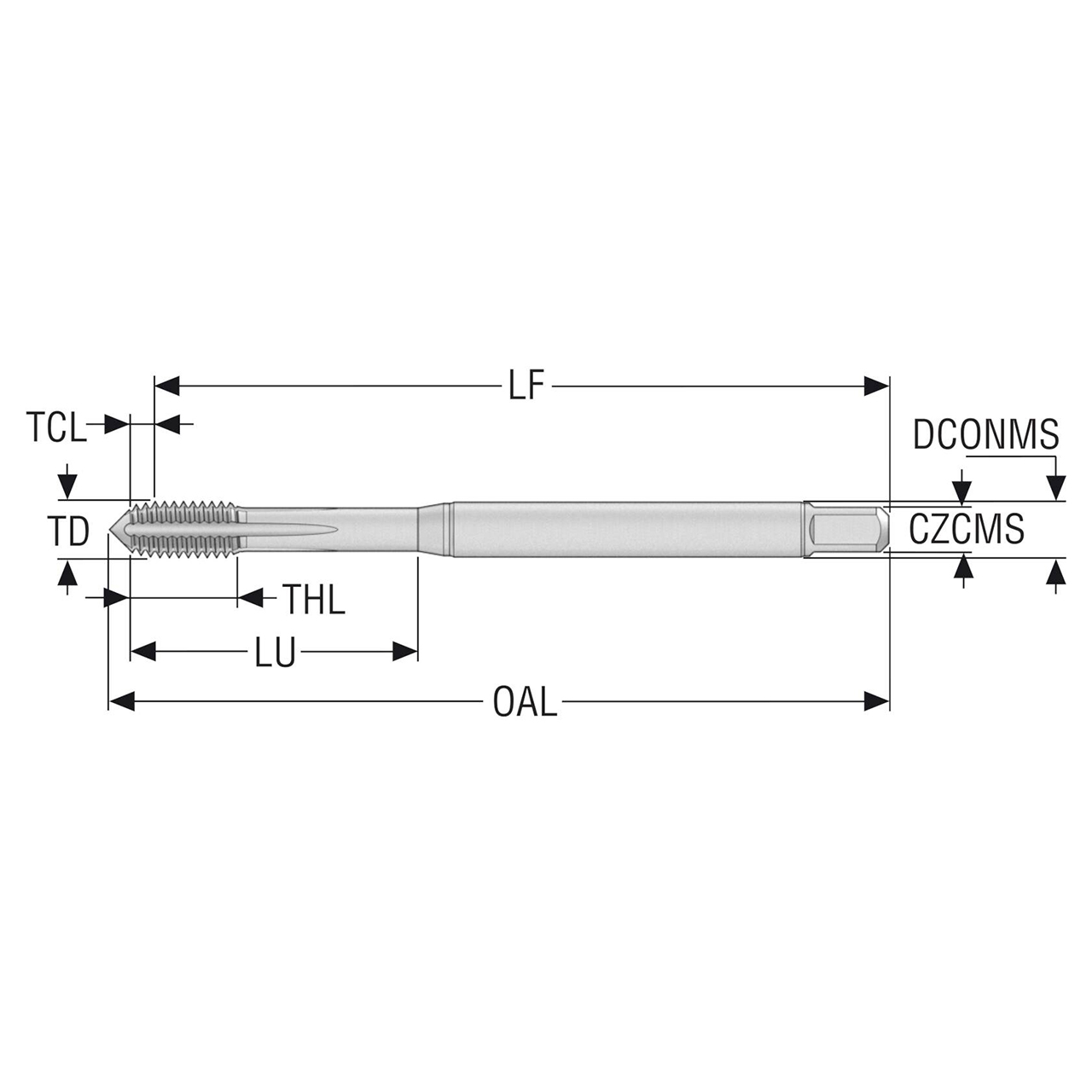

Product Specifications
Manufacturer Part Number10139204
Thread Diameter (Decimal Inch)0.079"
Thread Diameter (mm)2.00mm
Threading Chamfer Length (Decimal Inch)0.040"
Threading Chamfer Length (mm)1.02mm
Tap Chamfer Length (Decimal Inch)0.040"
Tap Chamfer Length (mm)1.02mm
Connection Diameter Machine Side (Decimal Inch)0.110"
Connection Diameter Machine Side (mm)2.80mm
Shank Diameter (Decimal Inch)0.110"
Shank Diameter (mm)2.80mm
Functional Length (Decimal Inch)1.732"
Functional Length (mm)43.98mm
Usable Length (Decimal Inch)0.315"
Usable Length (mm)8.00mm
Overall Length (Decimal Inch)1.823"
Overall Length (mm)46.30mm
Thread Length (Decimal Inch)0.315"
Thread Length (mm)8.00mm
Thread Diameter SizeM2
Recommended Premachined Hole Diameter (Decimal Inch)0.073"
Recommended Premachined Hole Diameter (mm)1.85mm
Connection Size Code2.80X2.10
Connection Size Code Machine Side2.80X2.10
Maximum Premachined Hole Diameter (Decimal Inch)0.073"
Maximum Premachined Hole Diameter (mm)1.85mm
Minimum Thread Pitch (Decimal Inch)0.016"
Minimum Thread Pitch (mm)0.40mm
Maximum Thread Pitch (Decimal Inch)0.016"
Maximum Thread Pitch (mm)0.40mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeT33
Cutting Geometry Type TechnicalOil grooves
MaterialHSS-PM
CoatingTiAIN+TiN
Product TypeThread Forming Tap
