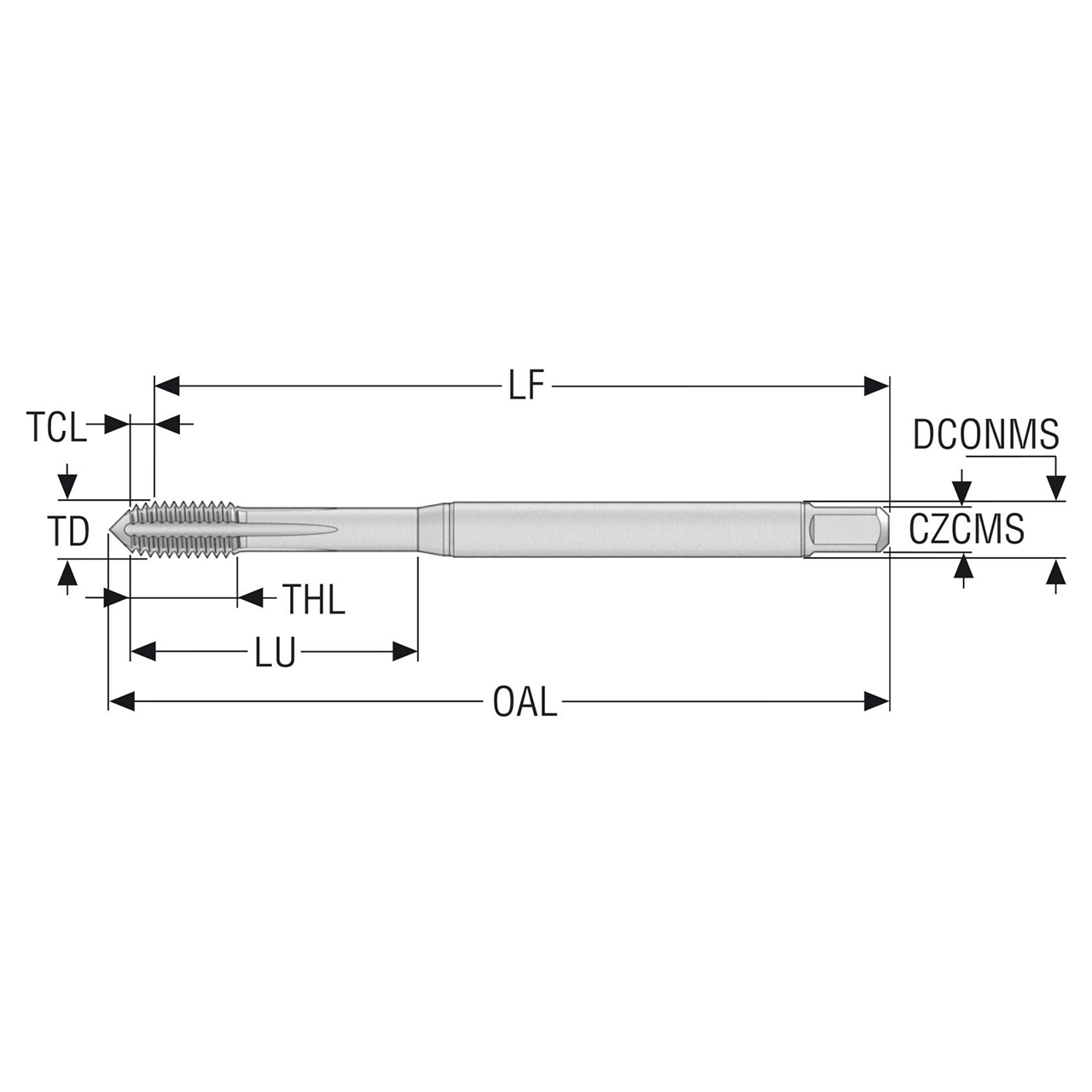

| Manufacturer Part Number | 10139245 |
| Thread Diameter (Decimal Inch) | 0.216" |
| Thread Diameter (mm) | 5.49mm |
| Threading Chamfer Length (Decimal Inch) | 0.075" |
| Threading Chamfer Length (mm) | 1.90mm |
| Tap Chamfer Length (Decimal Inch) | 0.075" |
| Tap Chamfer Length (mm) | 1.90mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 3.075" |
| Functional Length (mm) | 78.10mm |
| Usable Length (Decimal Inch) | 1.181" |
| Usable Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 3.244" |
| Overall Length (mm) | 82.40mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | UNF12-28 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.201" |
| Recommended Premachined Hole Diameter (mm) | 5.10mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.201" |
| Maximum Premachined Hole Diameter (mm) | 5.10mm |
| Minimum Threads Per Inch (mm) | 28.00mm |
| Maximum Threads Per Inch (mm) | 28.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Thread Forming Tap |
