Seco Tools 10139627 | T32-R40N09C05-7/16-20-21R UNF7/16-20 Thread Size x 0.438" Diameter x 0.315" Shank x 3.937" OAL 40 Degree Helix Angle 3 Flute TiAIN+TiN Coated HSS-E Spiral Flute Tap

$69.69
Brand:
Seco Tools
Thread Size:
UNF7/16-20
Number of Flutes:
3
Material:
HSS-E
Finish/Coating:
TiAIN+TiN
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
interval quantity:
1
SKU:
17994495
Weight:
0.08 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139627 | T32-R40N09C05-7/16-20-21R UNF7/16-20 Thread Size x 0.438" Diameter x 0.315" Shank x 3.937" OAL 40 Degree Helix Angle 3 Flute TiAIN+TiN Coated HSS-E Spiral Flute Tap

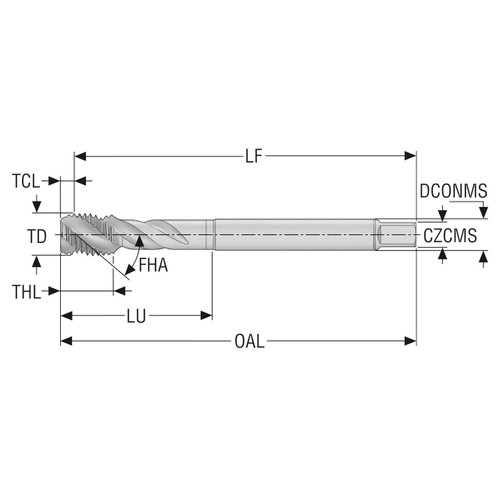

Product Specifications
Manufacturer Part Number10139627
Thread Diameter (Decimal Inch)0.438"
Thread Diameter (mm)11.11mm
Threading Chamfer Length (Decimal Inch)0.132"
Threading Chamfer Length (mm)3.35mm
Tap Chamfer Length (Decimal Inch)0.132"
Tap Chamfer Length (mm)3.35mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.805"
Functional Length (mm)96.65mm
Usable Length (Decimal Inch)2.992"
Usable Length (mm)76.00mm
Overall Length (Decimal Inch)3.937"
Overall Length (mm)100.00mm
Thread Length (Decimal Inch)0.591"
Thread Length (mm)15.00mm
Thread Diameter SizeUNF7/16-20
Recommended Premachined Hole Diameter (Decimal Inch)0.390"
Recommended Premachined Hole Diameter (mm)9.90mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.395"
Maximum Premachined Hole Diameter (mm)10.03mm
Minimum Threads Per Inch (mm)20.00mm
Maximum Threads Per Inch (mm)20.00mm
Flute Helix Angle (Degree)40 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2B
Threading Chamfer TypeC
Thread Form TypeUNF
Cutting DirectionRight Hand
Cutting Geometry TypeT32
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E
CoatingTiAIN+TiN
Product TypeSpiral Flute Tap
